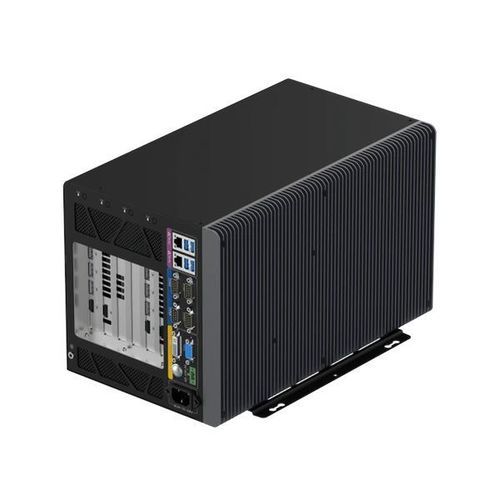

EDGE PC AIPC-3000 series

Edge AIartificial intelligenceGPU

Overview
The AIPC-3000 Series is a modular tower and wall-mount industrial PC platform engineered for AI edge computing, GPU acceleration and industrial automation control. It supports Intel® 12th–14th Gen Celeron®, Pentium® and Core™ processors (up to 65W TDP) and offers scalable GPU and I/O expansion for demanding industrial workloads.

Key features

• Supports Intel® 12th–14th Gen CPUs (Celeron®, Pentium®, Core™) up to 65W
• Models available with Intel® Q670 or H610 chipsets (model-dependent)
• Flexible PCIe expansion: 2 × PCIe x16 + 1 × PCIe x4 (AQ6-6L) or 1 × PCIe x16 + 1 × PCIe x4 (AH6-3L / AH6-3S)
• GPU support up to 300mm (AQ6-6L, AH6-3L) or up to 230mm (AH6-3S)
• Dual Intel® Gigabit LAN ports
• 4 × RS-232 serial ports and 4 × USB 3.0 ports
• VGA + DVI dual-display outputs
• Storage: M.2 (NVMe or SATA depending on model) plus dual SATA bays for 2.5"/3.5" drives
• Wireless expansion via Mini PCIe and M.2 Key-B slots (WiFi/4G/5G modules)
• Power supplies: 750W (AQ6-6L); 500W (AH6-3L, AH6-3S); AC 90–264V input
• Rugged all-steel chassis for stable thermal performance and 24/7 operation

Product Reference Table
Model | Chipset | PCIe Expansion | Max GPU Length | Storage | Power Supply | Dimensions (mm)
AIPC-3000-AQ6-6L | Intel® Q670 | 2 × PCIe x16 + 1 × PCIe x4 | Up to 300mm | M.2 NVMe + 2 × SATA (2.5"/3.5") | 750W, AC 90-264V | 370 × 252.5 × 234.8
AIPC-3000-AH6-3L | Intel® H610 | 1 × PCIe x16 + 1 × PCIe x4 | Up to 300mm | M.2 SATA + 2 × SATA | 500W, AC 90-264V | 370 × 260 × 169.5
AIPC-3000-AH6-3S | Intel® H610 | 1 × PCIe x16 + 1 × PCIe x4 | Up to 230mm | M.2 SATA + 2 × SATA | 500W, AC 90-264V | 280 × 260 × 169.5

Application areas

• Industrial AI and GPU-intensive tasks: machine vision, semiconductor and PCB inspection, multi-camera defect detection
• GPU-based AI acceleration and frame grabber expansion for real-time image processing
• Production line control, robotics integration, motion control and smart factory edge computing
• Edge server roles: SCADA, MES integration, AI inference deployment, industrial data analytics, energy infrastructure monitoring

Technical specifications

• Processor support: Intel® 12th–14th Gen Celeron®, Pentium®, Core™ processors, up to 65W TDP
• Chipsets: Intel® Q670 (AQ6-6L) or H610 (AH6-3L, AH6-3S)
• Memory: 2 × SO-DIMM slots, up to 64GB DDR4
• Networking: Dual Intel® Gigabit Ethernet (2 × GbE)
• Serial I/O: 4 × RS-232
• USB: 4 × USB 3.0
• Display: VGA + DVI dual outputs
• PCIe expansion: Up to 2 × PCIe x16 + 1 × PCIe x4 (AQ6-6L) or 1 × PCIe x16 + 1 × PCIe x4 (AH6 models); some x16 slots operate at x8 link by default
• GPU support: up to 300mm (AQ6-6L, AH6-3L) / up to 230mm (AH6-3S)
• Storage: M.2 2242/2280 (NVMe on AQ6-6L, SATA on AH6 models); dual SATA bays for 2.5"/3.5" drives
• Wireless expansion: Mini PCIe and M.2 Key-B slots for WiFi/4G/5G modules
• Power: AQ6-6L = 750W PSU; AH6-3L / AH6-3S = 500W PSU; AC 90–264V input
• Chassis: Rugged all-steel construction for control cabinet deployment and continuous 24/7 operation
