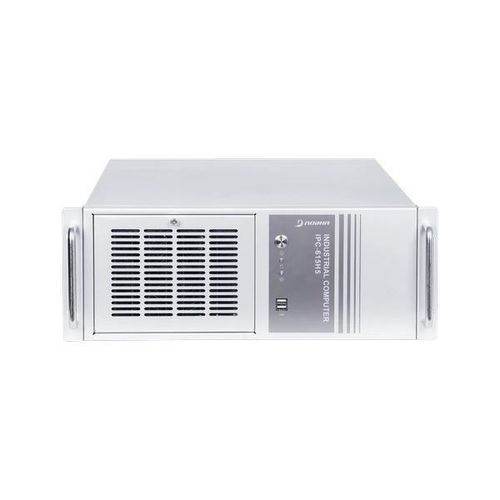

Server PC IPC-615H5 series

rack-mountIntel® Core™14th Generation Intel® Core™

Product Overview
The IPC-615H5 Series is a 4U rackmount industrial PC family engineered for automation, machine vision, AI inference and control tasks. Models support Intel® 6th–14th Gen Core™/Pentium®/Celeron® processors (model-dependent, up to 125W TDP), extensive PCIe/PCI expansion, flexible storage and multiple display outputs for factory and edge deployments.

Key Features

• Chassis: Rugged 4U rackmount design for control cabinets, server racks and test benches
• CPU support: Intel® Core™/Pentium®/Celeron® (6th–14th Gen depending on model), up to 125W TDP on supported SKUs
• Chipsets: H110, Q170, H420E, H610, Q470, Q670 (model-dependent)
• Memory: DDR4 or DDR5 SO-DIMM (Q670 supports DDR5); up to 64GB depending on model
• Expansion: Combinations of PCIe Gen3/Gen4 x16/x4 and legacy PCI 32-bit slots for GPUs, vision frame grabbers, motion and DAQ cards
• Display: VGA, HDMI, DisplayPort outputs (dual or triple display depending on model)
• Storage: M.2 and SATA support; select models offer RAID 0/1/5/10 and up to 4× SATA3.0
• Networking & I/O: Dual Gigabit Ethernet, multiple COM ports, USB 3.0/2.0 (model-dependent)
• Power: AC input (100–240V options across the series)

Application Areas
Suitable for machine vision inspection, AI inference at the edge, robotic and motion control, CNC/laser control, industrial edge computing and other demanding automation and control applications. Flexible PCIe/PCI options enable integration with both modern accelerators and legacy control cards.

Product Series - Reference Models and Highlights (table)

• IPC-615H5-H110 | Intel H110 | CPU: 6th–9th Gen | Memory: DDR4 | PCIe/PCI: 1×PCIe x16, 3×PCI, 3×PCIe x4 | Display: VGA, HDMI, DP (dual) | Storage: 2×SATA3.0, 1×M.2
• IPC-615H5-Q170 | Intel Q170 | CPU: 6th–9th Gen | Memory: DDR4 | PCIe/PCI: 5×PCIe, 2×PCI | Display: VGA, HDMI, DP (triple) | Storage: RAID support, SATA3.0 + M.2
• IPC-615H5-H420E | Intel H420E | CPU: 10th–11th Gen | Memory: DDR4 | PCIe/PCI: 1×PCIe x16, 3×PCIe x4, 3×PCI | Display: VGA, HDMI, DP (dual) | Storage: 3×SATA3.0, 1×M.2
• IPC-615H5-Q470 | Intel Q470 | CPU: 10th–11th Gen | Memory: DDR4 | PCIe/PCI: 2×PCIe x16, 3×PCIe x4, 2×PCI | Display: VGA, HDMI, DP (triple) | Storage: RAID support, SATA3.0 + M.2
• IPC-615H5-H610 | Intel H610 | CPU: 12th–13th Gen | Memory: DDR4 | PCIe/PCI: 1×PCIe x16, 3×PCIe x4, 3×PCI | Display: VGA, HDMI, DP (triple) | Storage: 3×SATA3.0, 1×M.2
• IPC-615H5-Q670 | Intel Q670 | CPU: 12th–14th Gen | Memory: DDR5 | PCIe/PCI: 2×PCIe x16, 3×PCIe x4, 2×PCI | Display: VGA, HDMI, DP (triple) | Storage: RAID support, 4×SATA3.0 + M.2 (PCIe 4.0)

Included / Typical I/O & Interfaces

• Multiple USB 3.0 / USB 2.0 ports (model-dependent)
• Dual Gigabit Ethernet (GbE)
• Multiple COM (serial) ports
• VGA, HDMI and DisplayPort outputs for multi-display configurations
• M.2 and SATA connectors; hardware RAID on select models

Technical Specifications

• Series name: IPC-615H5
• Form factor: 4U rackmount industrial PC
• Supported chipsets: H110, Q170, H420E, H610, Q470, Q670 (model-dependent)
• Supported CPUs: Intel® Core™/Pentium®/Celeron® (6th–14th Gen, model-dependent), up to 125W TDP
• Memory: DDR4 SO-DIMM or DDR5 SO-DIMM (Q670); up to 64GB (model-dependent)
• Expansion: PCIe Gen3/Gen4 and legacy PCI 32-bit slots; full-length card support
• GPU/AI options: Support for discrete GPUs and accelerator cards
• Storage: M.2 (PCIe/NVMe) and multiple SATA3.0 bays; RAID 0/1/5/10 on select SKUs
• Networking: Dual GbE LAN
• Power input: AC 100–240V options
• Target applications: Machine vision, AI inference, robotic/motion control, CNC/laser control, industrial edge computing
