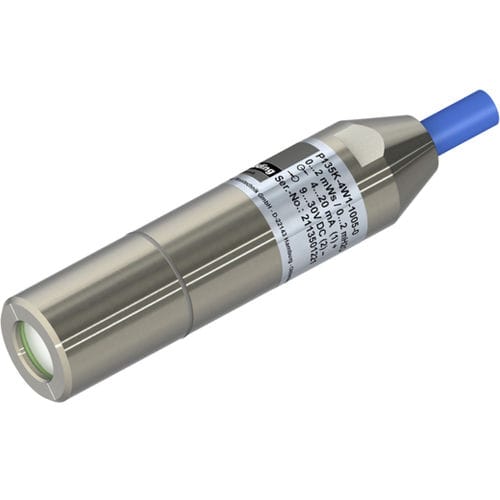

Hydrostatic level sensor P135K

for liquidsanalogATEX

The  P135K  level  transmitter  is  due  to  the  slim  and  also  shortened  design  with  a  diameter of  22  mm, optimal  to  install  in  1"  pipes.  Typical applications are in the field of industrial and drinking water, however the sensor is also widely used in pumping and lifting systems. The ceramic sensor element is resistant to aggressive and abrasive media. Its housing is made of high-quality stainless steel 1.4404 and is therefore suitable for almost all media.  Our modular design concept provides a wide variety of products.  Feel free to contact us if you need a customization that is not listed in this datasheet. The P135K immersion probe has an RS485 interface. Features Dry capacitive ceramic sensor 22 mm Ø ideal for 1" pipes Accuracy ≤ 0,2% Increased protection against voltage surges Optionally integrated PT100 / PT1000 Sensor for temperature measurement Ex II 1G Ex ia IIC T4 Ga I M2 Ex ia I Mb Applications: Gaseous media Well / Deep well Viscous and pasty media Potentially explosive areas Technical data: Power supply - 20 mA output: 9…30 V DC - 10 V output: 15…30 V DC - 20 mA output ATEX: 12…30 V DC Accuracy - ≤ ± 0,2 % FS @ 25 °C Long term stability - ≤ ± 0,2 % FS / Year Response time - 200 ms - others on request Switch-on time - < 1 s Temperature coefficient - Zero: ≤ ± 0,02 % FS / Kelvin - Span: ≤ ± 0,01 % FS / Kelvin Medium temperature - -25…80 °C - -20…70 °C with EX ia IIC T4 Surrounding temperature - -25…80 °C - -20…70 °C bei EX ia IIC T4 Storage temperature - -40…85 °C Short-circuit resistance - Permanent Reverse polarity protection - Protection against reverse polarity, but no function
