Overview

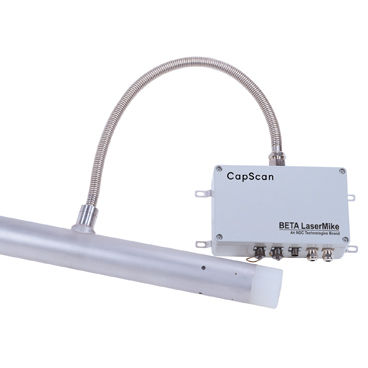

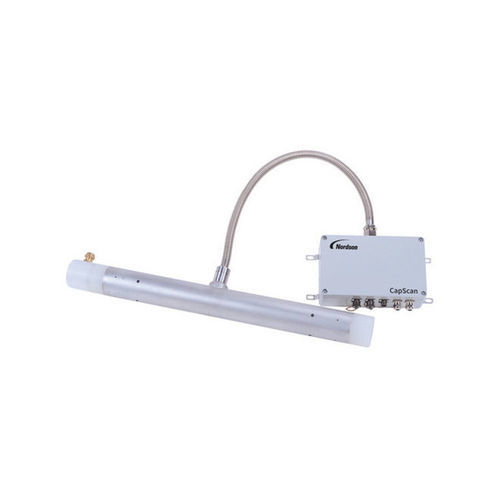

The CapScan 2000 is a drift-free, in-process capacitance measurement system designed for datacom and cable manufacturing. It enables on-line, high-speed correlation of in-process and post-process capacitance data to detect process deviations early, reduce downgrades and rejects, and improve product yield.

Features & Benefits

• High-accuracy gauging – accurate readings on wet or dry trough installations at line speeds up to 3,000 m/min.
• Drift-free electronics – proprietary self-balancing bridge, auto gain and auto self-calibration for stable, repeatable results.
• Real-time analysis – fast analog output suitable for FFT/SRL analysis to help prevent costly SRL failures.
• Flexible connectivity – interfaces for PLCs, PCs or Nordson controllers for process integration.
• Dry trough option – high-pressure end caps available for dry installations.

Three Models Available
KG2008 | Cable range: 0.1–8 mm (0.004–0.32 in.) | Accuracy: Zero ±0.1 pF/m; Gain ±0.2% | SRL bandwidth: 3.0 GHz | Short electrode: 66.6 mm (2.62 in.) | Long electrode: 100 mm (3.94 in.)
KG2016 | Cable range: 0.1–16 mm (0.004–0.63 in.) | Accuracy: Zero ±0.1 pF/m; Gain ±0.2% | SRL bandwidth: 2.0 GHz | Short electrode: 100 mm (3.94 in.) | Long electrode: 150 mm (5.90 in.)
KG2025 | Cable range: 0.1–25 mm (0.004–0.98 in.) | Accuracy: Zero ±0.1 pF/m; Gain ±0.5% | SRL bandwidth: 2.0 GHz | Short electrode: 100 mm (3.94 in.) | Long electrode: 150 mm (5.90 in.)

Applications

• On-line capacitance monitoring for datacom and telecom cable production.
• Correlation of in-process and post-process measurements to control SRL, crosstalk and attenuation.
• High-speed production lines requiring continuous process control and early fault detection.

Technical specifications

• System type: Drift-free, in-process capacitance gauge for cable measurement.
• Line speed capability: Measurements at line speeds up to 3,000 m/min (model and installation dependent).
• Electronics: Low signal-to-noise ratio and proprietary drift-free design.
• Stability features: Self-balancing bridge, auto gain and auto self-calibration.
• Outputs: Fast analog output suitable for FFT/SRL analysis; integrations to PLCs, PCs or Nordson controllers.
• Installation options: Wet or dry trough; dry trough option includes high-pressure end caps.
• Models: KG2008, KG2016, KG2025 (see model table for ranges and accuracies).
