Profile gauge AccuScan 50 series

diameterdigitallaser

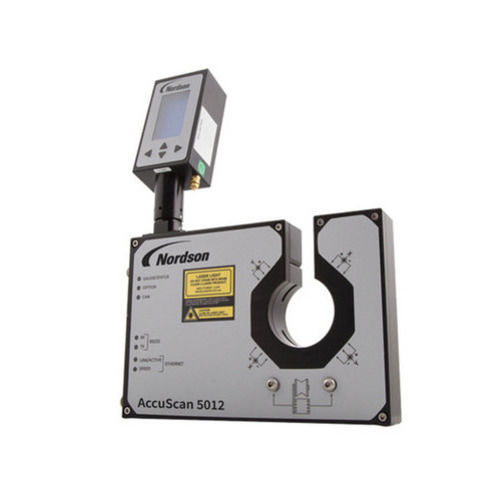

Overview The AccuScan 5000 two-axis diameter gauge performs high-speed diameter and profile measurements at 2400 scans per second per axis (4800 measurements/sec total). It delivers industry‑leading single-scan accuracy for inline tolerance checks, profile monitoring and high-speed flaw detection across a range of cylindrical and shaped products. Models cover OD ranges up to 80 mm (3.15 in.) to suit varied production requirements.

Features & Benefits

• High-Speed Tolerance Checking option enables early, reliable detection of lumps and necks to reduce scrap and rework.
• Integrated air purge protects sensor windows from dust and debris for increased uptime and lower maintenance.
• Wide communications support: RS-232, EtherNet/IP, Ethernet TCP/IP, DeviceNet, Profinet, Profibus, analog and digital I/O for easy PLC/plant integration.
• Optional STAC logic (stranded/twisted/armoured/corrugated) provides accurate max/min or envelope readings on shaped and wrapped products at higher rates for faster process control.

Several Models Available
Models (series): AccuScan 5012, AccuScan 5040, AccuScan 5080

Specification Table
Model | OD Range | Gate Size | Accuracy | Resolution | Scan Rate
AccuScan 5012 | 0.1 - 12 mm (0.004 - 0.47 in.) | 16 mm (0.63 in.) | ±0.0005 mm (±0.000020 in.) | 0.00001 mm (0.0000004 in) | 2400 scans/sec/axis
AccuScan 5040 | 0.2 - 40 mm (0.008 - 1.50 in.) | 52 mm (2.05 in.) | ±0.001 mm (±0.000040 in.) | 0.00001 mm (0.0000004 in) | 2400 scans/sec/axis
AccuScan 5080 | 1.27 - 80 mm (0.050 - 3.15 in.) | 108 mm (4.25 in.) | ±0.002 mm (±0.000080 in.) | 0.00001 mm (0.0000004 in) | 2400 scans/sec/axis

Applications

• Inline high-speed tolerance checking and flaw detection
• Monitoring complex product shapes and profiles (tubes, cables, wire, film, extrusions)
• Process control feedback on production lines to reduce waste and improve yield

Technical Specifications

• Scan rate: 2400 scans per second per axis (4800 measurements/sec total)
• Resolution: 0.00001 mm (0.0000004 in)
• Accuracy (model-dependent): 5012 ±0.0005 mm; 5040 ±0.001 mm; 5080 ±0.002 mm
• OD ranges: 0.1–12 mm (5012), 0.2–40 mm (5040), 1.27–80 mm (5080)
• Gate sizes: 16 mm (5012), 52 mm (5040), 108 mm (5080)
• Integrated air purge for optical protection and reduced maintenance
• Optional High-Speed Tolerance Checking and STAC logic for special product constructions
• Communications: RS-232, EtherNet/IP, Ethernet TCP/IP, DeviceNet, Profinet, Profibus, analog & digital I/O
• Designed for inline integration and real-time process control
