Optical micrometer Z-Mike Pro series

lasercomputerizedexternal

Overview

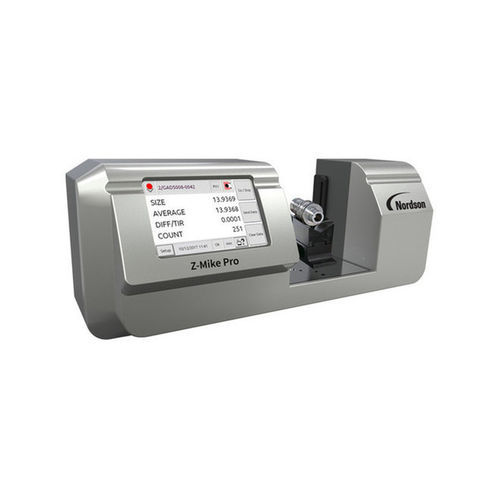

The Z-Mike Pro is a non-contact laser micrometer for dimensional inspection of precision parts on the shop floor and in metrology labs. It measures diameter, ovality, effective cutting diameter, taper and total indicated runout (TIR) without touching the part, avoiding mechanical deformation and operator influence. Models deliver up to ±0.5 µm accuracy and model-dependent repeatability as specified below. Measurements are traceable to national standards (NIST).

Features & Benefits

• Patented optical design and electronics for consistent accuracy and repeatability.
• Automatic calibration and temperature compensation for stable results in production environments.
• Measurement precision insensitive to surface finish (gloss, matte, color) and to ambient stray light.
• Non-contact technique eliminates operator-induced measurement error and avoids part distortion.
• No precise centering required—minimal setup across a wide range of part sizes.
• Rugged sealed cast housing for dust- and moisture-prone factory environments.
• Large high-resolution touchscreen with intuitive UI; store and recall multiple product programs.
• Integrated I/O for straightforward integration with automated handling and motion control.

Two Models Available
Measurement | Z-Mike Pro 25 | Z-Mike Pro 50
Measurement Range | 0.100–25.4 mm (0.004–1.0 in.) | 0.254–50 mm (0.010–2.0 in.)
Repeatability | ±0.13 µm | ±0.25 µm
Accuracy | ±0.5 µm | ±0.76 µm
Depth of Field | ±0.75 x 25 mm | ±1.5 x 50 mm
Laser Beam Velocity | 50 m/sec | 100 m/sec
Temperature Coefficient | <0.2 µm/°C | <0.2 µm/°C
Calibration | Factory calibrated (NIST traceable) | Factory calibrated (NIST traceable)

Applications

• Inspection of camshafts, crankshafts, cutting-tool blanks and other rotating or cylindrical precision parts.
• Lab metrology and inline production inspection where high-accuracy non-contact measurement is required.

Technical specifications

• Models: Z-Mike Pro 25, Z-Mike Pro 50
• Measurement capabilities: diameter, ovality, effective cutting diameter, taper, TIR
• Repeatability: ±0.13 µm (Pro 25); ±0.25 µm (Pro 50)
• Accuracy: ±0.5 µm (Pro 25); ±0.76 µm (Pro 50)
• Measurement ranges: 0.100–25.4 mm (Pro 25); 0.254–50 mm (Pro 50)
• Depth of field/measurement area: ±0.75 x 25 mm (Pro 25); ±1.5 x 50 mm (Pro 50)
• Laser beam velocity: 50 m/s (Pro 25); 100 m/s (Pro 50)
• Temperature coefficient: <0.2 µm/°C
• Calibration: factory calibrated, NIST traceable
• Construction: sealed cast housing for factory-floor use
• User interface: large touchscreen; multiple product programs storable
• Integration: integrated I/O for automation and motion control
