insert with spike attachments / steel / stainless steel / POM
07113

{{requestButtons}}

Characteristics

  • Type:

    with spike attachments

  • Material:

    steel, stainless steel, POM

  • Configuration:

    round

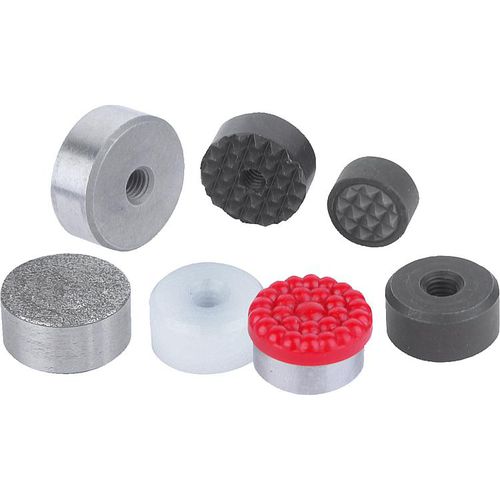

Description

Grippers and inserts round

Material:
Form C, F, M tool steel
Form E, O, P stainless steel
Form K POM

Version:
Form C hardened and black oxidised.
Form E hardened, bright.
Form K white.
Form O with diamond impregnated surface comparable to 100 grade abrasive grit.
Form P with polyurethane surface, hardness 60 Shore.
Form F, hardened and black oxidised.
Form M with carbide serrations, black oxidised.

Note:
Grippers and inserts are ideal for use in clamping arms, gripping systems, clamping fixtures, clamping jaws and self-aligning pads. The use of grippers allows the transfer of very high torque values and above average grip, even with hard materials and surface irregularities.

Form O: The abrasive diamond surface is bonded firmly to the base. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.

Form P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion-resistant and does not discolour. It offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.
