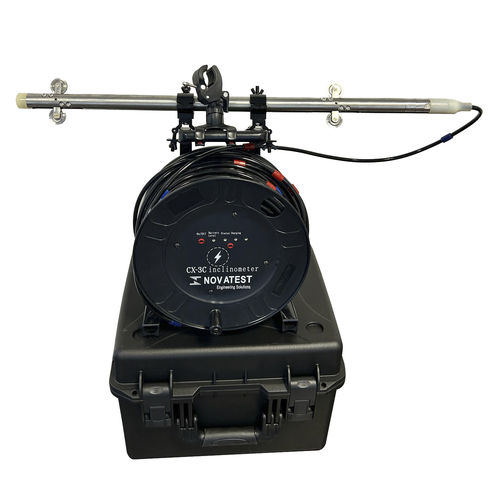

2-axis inclinometer CX-3C

RS-485MEMShigh-precision

The CX-3C removable borehole inclinometer is a high-precision inclination detection system, designed for geotechnical and structural monitoring. It is particularly suitable for geological monitoring, construction, civil engineering, and other similar safety monitoring applications. Main Product Features: - MODBUS RTU protocol compliant - Wide measuring range - High precision - Stable performance - Solid and durable - Easy maintenance Technical Specifications: Number of Axes: 2 axes Measuring Range: ±15° (±30° option available) Cable: 60 m with a diameter of 8.40 mm Output: RS485 (Modbus RTU protocol) Power Supply: Voltage 8～30V DC Repeatability: ±0.003° Accuracy: 0.001° – 0.005° Sensor Technology: MEMS IP Protection Class: IP68 Probe Dimensions: 28 mm x 790 mm (diameter * length) External Dimensions: 310 x 400 x 200 mm Operating and Storage Temperatures: from -20 to +60°C Continuous Working Time: 10 hours Typical Applications: Geotechnical and structural monitoring (Geo/Structural Monitoring) Reference Standards: GB50026-2007 / ISO18674-3-2017
