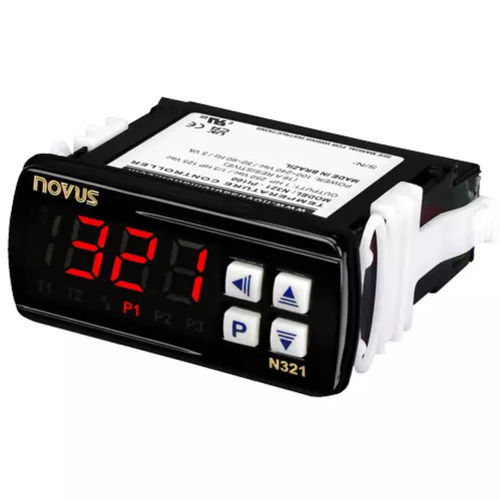

Digital temperature controller N321

IP65heatingcooling

The N321 temperature controller are used to measure, indicate and control temperature in many different systems. Accepts 4 sensors types: Pt100, NTC or Thermocouple J. The user can program the control action according to the application: direct action (refrigeration) or reverse action (heating). The internal 10 A relay can directly switch compressors or electrical heaters with ON/OFF control. - Sensor input: Pt100 (-50 to 300 °C), Thermocouple J (0 to 600 °C) or thermistor (-30 to +105°C) - Output: Relay SPDT: 1 HP 250 Vac / 1/3 HP 125 Vac (16 A Resisitive) - Resolution: 0,1 °C from -19,9 to 199,9 °C - Accuracy: ± 0,5 °C / °F ±1 digit (Pt100 / Thermistor) and ±2 °C for Thermocouple - Adjustable hysteresis - Sampling: 1,5 per second - Power supply: 100-240 Vac (internal) or 12~30 Vdc - Digital comunication via RS485 with Modbus RTU protocol (optional) - Dimensions: 75 x 33 x 75mm
