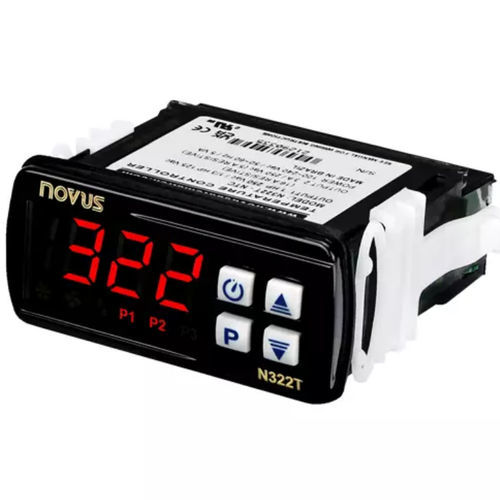

Digital temperature controller N322T

IP65heatingrefrigeration

N322T is a temperature controller for heating or cooling with a built-in timer. It has a time delay function on power-up and minimum on-and-off time programming. It has a second relay with programmable cyclic timer activation and a key for manual timer control. - Sensor input: Thermistor (-30 to +105°C / -22 to 221 °F), Pt100 (-50 to 300 °C), Thermocouple J - (0 to 600 °C), J, K or T thermocouple - Output: Relay SPDT: 1 HP 250 Vac / 1/3 HP 125 Vac (16 A Resisitive) and relay SPST-NA: 3 A / 250 Vca - Resolution: 0,1 °C from -19,9 to 199,9 °C - Operating temperature: 0 to 40 °C - Power supply: 100~240 Vac/dc (± 10 %) or 24 Vdc/ac (12~30 Vdc) - RS-485 digital communication; RTU MODBUS protocol (optional) - Dimensions: 75 x 33 x 75 mm
