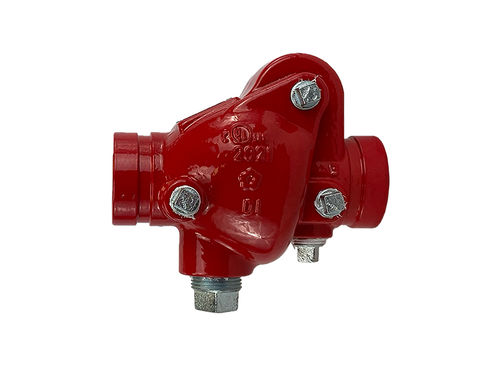

Swing check valve H84X seriesfor waterbackflowstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Fluid
- for water
- Applications
- backflow
- Material
- carbon steel, stainless steel
- DN
Max.: 12 in
Min.: 2 in
- Pressure
20 bar, 24 bar
(290.1 psi, 348.1 psi)
Description
Grooved swing type check valve that allows waterflow in one direction only.A hinged clapper remains open with water flowing in one direction, and automatically closes,with the help of an incorporated spring, when flow stops preventing backflow. The clapperseat design permits leak free sealing of back pressures in service conditions ranging from 24bar to as low as 0.35 bar (710mm water head).
