Orientable monitor mount VAMONITOR

adjustable-heightwall-mountedswiveling

Product Overview

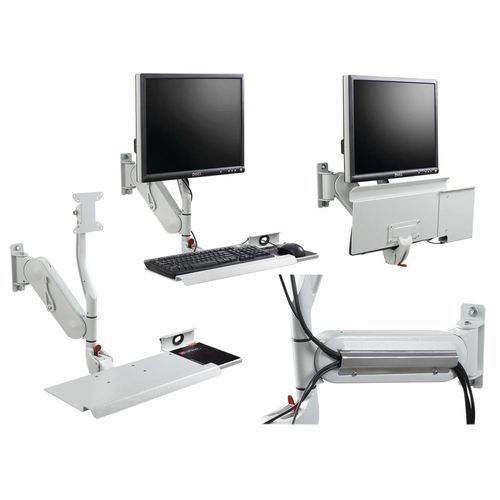

Pendant monitor and keyboard arm provides a heavy‑duty, fully adjustable mounting solution for a flat‑panel display, keyboard and mouse in industrial environments. The display and keyboard can be raised or lowered with one hand; the keyboard folds when not in use. The arm rotates at both the mounting and display ends to position the workstation where it is most convenient for the operator, freeing plant‑floor space.

Features

• Supports 6–15 lb (internal gas spring counterbalance)
• 12" vertical height adjustment
• Toggle lever locks arm when repositioned vertically
• VESA mounting patterns: 3" x 3" and 4" x 4"
• Arm swivel: 340° at display end, 180° at mounting end
• Display tilt: +15° forward / -45° back to reduce glare
• Folds up within 7" of the wall
• Display and keyboard remain level during vertical travel
• Side cable manager protects cables from pulling and chafing
• Monitor, keyboard and mouse not included

Product Attributes (table)
Article Number: 18691
Height (imperial): 21.22in
Height (metric): 539mm
Width (imperial): 25in
Width (metric): 635mm
Depth (imperial): 25.63in
Depth (metric): 651mm
Material: Aluminum
Finish: Powder Coated
Color: Light Gray
Color Code: RAL 7035
Thickness (imperial): 0.12in
Thickness (metric): 3mm
Weight (imperial): 19lb
UPC: 783510186913
EAN: 8713574252462
Standard Packaging Quantity: 1
Packing Quantity: 1

Bulletin
VM5

Technical specifications

• Load capacity: 6–15 lb (internal gas spring counterbalance)
• Vertical travel: 12"
• VESA mounting patterns: 3" x 3" and 4" x 4"
• Swivel: 340° at display end, 180° at mounting end
• Tilt: +15° forward / -45° back
• Folded clearance: within 7" of wall
• Material: Aluminum with powder coated finish
• Color: Light Gray (RAL 7035)
• Overall dimensions (H x W x D): 21.22in x 25in x 25.63in (539mm x 635mm x 651mm)
• Weight: 19 lb
• Packaging quantity: 1
