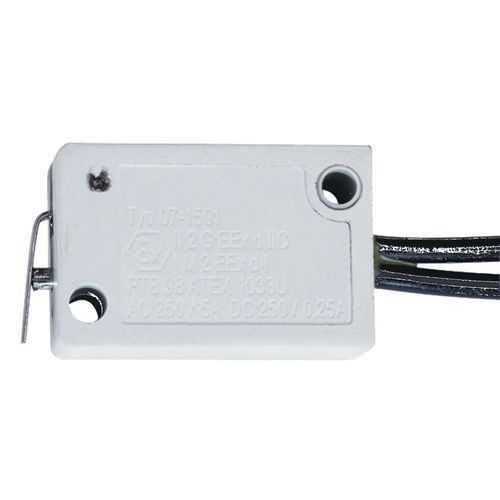

Hazardous area limit switch LEDHLSWITCH

ULexplosion-proofplastic housing

Product Overview
The Hazardous Location Door Switch is designed for use with nVent HOFFMAN Hazardous Location LED Lights in Class 1, Division 2 hazardous areas. The included hardware kit allows mounting on any enclosure flange while maintaining the enclosure rating up to UL Type 4X. The switch activates the LED light when the enclosure door is opened. A five-foot connection cable is provided for wiring to the enclosure back panel.

Features

• For Class 1, Division 2 hazardous areas
• Maintains enclosure rating up to UL Type 4X
• Includes five-foot connection cable
• Mountable on any enclosure flange for straightforward installation

Industry Standards
Switch rating: Explosion-proof for Class 1, Division 2, Groups A, B, C and D

Product Attributes
Article Number: 27194
Catalog Number: LEDHLSWITCH
Height: 0.39 in / 10 mm
Width: 0.71 in / 18 mm
Depth: 1.1 in / 28 mm
Material: Plastic
Finish: Smooth
Color: Gray
Operating Temperature: −24 to 194 °F / −20 to 90 °C
Weight: 0.24 lb
UPC: 783510271947
EAN: 8713574246560
Standard Packaging Quantity: 1
Packing Quantity: 1

Technical specifications

• Catalog#: LEDHLSWITCH
• Intended use: Activates Hazardous Location LED light when enclosure door is opened
• Mounting: Can be mounted on any flange of the enclosure; hardware kit included to maintain enclosure rating
• Environmental rating: Maintains rating up to UL Type 4X
• Hazardous classification: Class 1, Division 2 (Groups A, B, C, D)
• Cable: Included 5-foot connection cable for wiring to enclosure back panel
• Dimensions (H×W×D): 0.39 in × 0.71 in × 1.1 in (10 mm × 18 mm × 28 mm)
• Material / Finish / Color: Plastic, Smooth finish, Gray
• Operating temperature range: −24 to 194 °F (−20 to 90 °C)
• Weight: 0.24 lb
• Packaging: Standard packaging quantity 1
