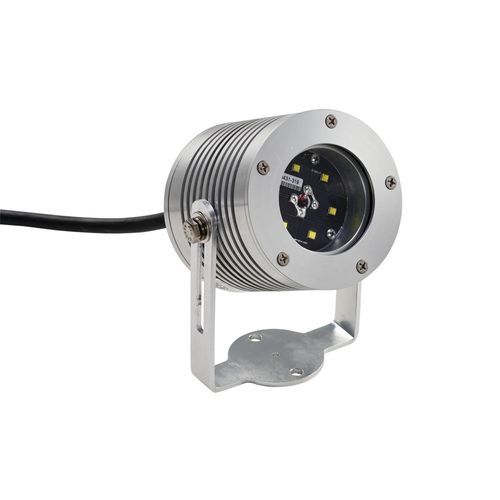

LED light module LEDHL24VCAN

Description
Hazardous-location LED can light designed for indoor and outdoor use in hazardous environments. Suitable for Class I, Division 2 locations, this luminaire delivers long life (100,000 hours projected) and efficient illumination with low power consumption. Constructed in stainless steel 316L with IP66 protection, it provides flexible mounting options and simple installation.

Industry Standards

• ETL Listed
• Class I Division 2, Groups A, B, C and D, T3
• Conforms to CSA C22.2 No. 137, 213, 250
• Conforms to UL 844 and UL 1598
• Conforms to ISA-12.12-01
• Maintains enclosure Type 4 / 4X rating when properly installed

Features

• Stainless steel 316L housing with IP66 protection for outdoor use
• Low power consumption with 12–24 VDC input
• Light output: 469 lm
• 360° rotation for flexible mounting orientation
• Wide beam optics with 100° illumination angle

Technical specifications

• Article Number: 27164
• Material: Stainless Steel 316L
• Finish: Brushed
• Input Voltage (DC): 12–24 V
• Current @ 12 VDC: 0.66 A
• Current @ 24 VDC: 0.35 A
• Light Output: 469 lm
• Weight: 2.3 lb (1 kg)
• UPC: 783510271640
• EAN: 8713574246577
• Standard Packaging Quantity: 1
• Packing Quantity: 1
