Aluminum profile CCS2T series

rectangularmountingfor support fabrication

Product Overview

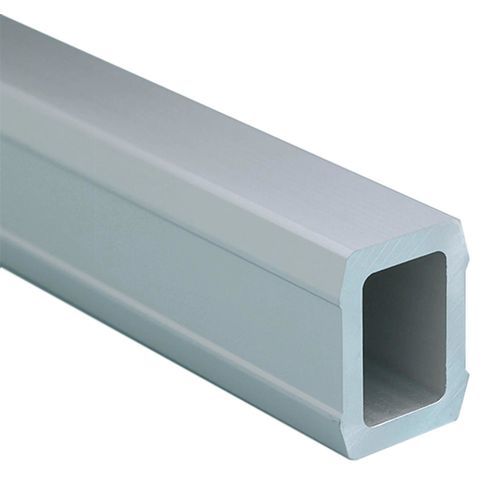

The Compact Series 2 Tube is a hollow aluminum extrusion designed to provide structural support and to serve as a conduit for equipment wiring within HMI arm systems. It integrates with Compact Series 2 connection components and mounts to support arms using set screws.

Features

• Hollow aluminum extrusion available in standard lengths: 500 mm, 1000 mm, 1500 mm
• Connection components fastened to support arm with set screws for secure assembly
• Assembled Compact Series 2 HMI arm system maximum load: 101 lb (45.8 kg)

Product SKUs and Key Dimensions

• CCS2T5 — Article 66290 — Length: 500 mm (19.68 in) — Width: 45 mm (1.77 in) — Depth: 60 mm (2.36 in) — Thickness: 8 mm (0.31 in) — Inside cross section: 1.96 in² (12.65 cm²) — Quick Ship: No
• CCS2T10 — Article 66580 — Length: 1000 mm (39.37 in) — Width: 45 mm (1.77 in) — Depth: 60 mm (2.36 in) — Thickness: 8 mm (0.31 in) — Inside cross section: 1.96 in² (12.65 cm²) — Quick Ship: Yes
• CCS2T20 — Article 66590 — Length: 1500 mm (59.06 in) — Width: 45 mm (1.77 in) — Depth: 60 mm (2.36 in) — Thickness: 8 mm (0.31 in) — Inside cross section: 1.96 in² (12.65 cm²) — Quick Ship: Yes

Material and Finish

• Material: Aluminum
• Finish: Anodized

Technical specifications

• Hollow aluminum extrusion suitable for cable routing and structural support
• Standard available lengths: 500 mm, 1000 mm, 1500 mm
• Connection components secure to the support arm using set screws
• Maximum assembled HMI arm system capacity: 101 lb (45.8 kg)
• Typical inside cross-sectional area: 1.96 in² (12.65 cm²)
• Standard section dimensions: width 45 mm (1.77 in); depth 60 mm (2.36 in); wall thickness 8 mm (0.31 in)
• Representative SKUs: CCS2T5 (500 mm), CCS2T10 (1000 mm), CCS2T20 (1500 mm)
