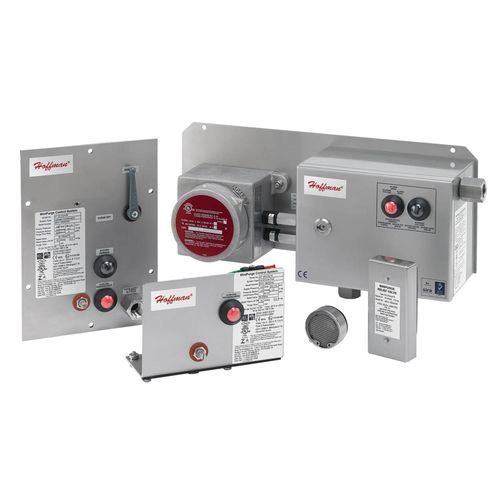

Pressurization system PLCF1YZ

Overview
Purge and pressurization is a protection method for enclosures (recommended minimum IP54) that removes internal explosive gases or dust, then maintains a positive internal pressure using clean protective air or inert gas. Two purge methods are provided: Leak Compensation (maintains pressure by compensating for losses) and Continuous Flow (maintains pressure by continuous protective airflow). This unit is configured for leak compensation and designed for flush mounting; certification options include Type Y and Type Z.

Features

• All exterior components in 316 stainless steel or corrosion‑resistant composite
• Space-saving flush or optional external mounting
• Local visual indicators for system and purge status
• Leak compensation models include a rapid purge valve and visual purge indicator
• Operates with dry, clean inert gas supply: 60–115 PSI (4–8 bar)
• Ambient operating temperature: -20°C to 55°C (-4°F to 131°F)
• Type X variant available with automatic purge cycle and 4P NO/20A/440VAC power contactor (115 VAC or 230 VAC coil)

Industry Standards

• Type X
• Ex [px] Ex [p]
• IECEx SIR.0019X [Gb, Db]
• Europe: ATEX Category 2 GD
• Cert. no. Sira 14ATEX1045X
• USA/Canada: NFPA496 Cl I Div 1 Groups A, B, C & D
• UL E466718
• Type Y
• Ex [py] Ex [p]
• IECEx SIR.0019X [Gb, Db]
• Type Z
• Ex [pz] Ex [p]
• IECEx SIR.0019X [Gc, Dc]

Product Attributes / Specifications

• Article Number: 27143
• Material: Stainless Steel 316L
• Finish: Brushed
• Thickness (imperial): 11ga
• Thickness (metric): 3.18 mm
• Operation Type: Leak Compensation
• Mounting: Flush
• Certification Details: Type Y; Type Z
• Weight: 7.8 lb
• UPC: 783510271435
• EAN: 8713574246300
• Standard Packaging Quantity: 1
• Packing Quantity: 1

Characteristics / Technical specifications

• Catalog#: PLCF1YZ
• Operation: Leak Compensation (Control Unit and Relief Valve) or Continuous Flow (Control Unit, Calibrated Outlet Orifice and Relief Valve)
• Recommended enclosure types: Type 4, 4X and 12 (minimum IP54)
• Gas supply: dry, clean inert gas, 60 PSI (4 bar) to 115 PSI (8 bar)
• Ambient operating temperature: -20°C to 55°C (-4°F to 131°F)
• Exterior components: 316 stainless steel or corrosion‑resistant composite
• Mounting options: flush (internal) or external
• Alarm/indicator: Local visual alarm indicator and dry contact output for remote alarm (Y/Z models); Type X provides power disconnect when pressurization is lost and automatic purge process
• Typical enclosure volume recommendation: Type Y/Z leak compensation typically for enclosures ≤ 60 ft³; Continuous Flow typically recommended for enclosures ≤ 17 ft³
