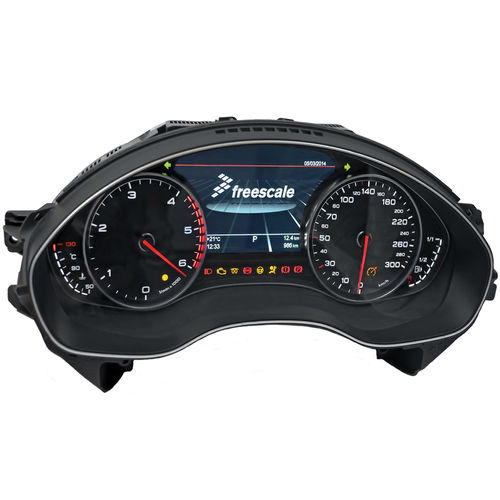

The MAC57D5xx MCU family is a multi-core architecture solution for mid-range instrument cluster and industrial applications. This MCU is based on the Arm® Cortex®-M processor for real-time and Cortex-A processors for applications and human-machine interfaces that offer leading-edge performance and scalability.
The MAC57D5xx MCU supports up to 2 WVGA resolution displays, one with in line head-up display hardware warping. The graphics content is generated using a powerful Vivante 2D GPU and the 2D animation and composition engine, to reduce memory footprint for content creation, integrated stepper motor drivers and a powerful I/O processor.
The MAC57D5xx MCU integrates NXP®’s latest SHE-compliant CSE2 engine and delivers support ISO26262 ASIL-B functional safety compliance.
Arm-based multi-core architecture platform
Cortex-A5, 32-bit CPU (application processor)
Cortex-M4, 32-bit CPU (vehicle processor)
Cortex-M0+, 32-bit CPU (I/O processor)
Intelligent stepper motor drive with stepper stall detect
Low-power mode peripheral management
Supports 2 x WVGA displays
On-the-fly Head-Up Display (HUD) warping engine
Functional safety and security compliant
Ethernet 10/100 + AVB (ENET)
Autonomous real-time clock (self-calibrating)
