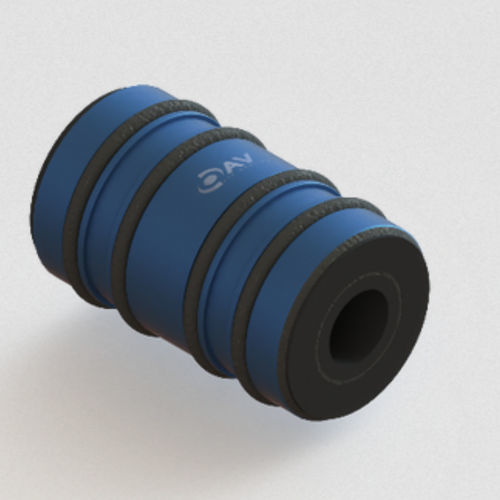

Radial plain bearing OAVTB32i13linearair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- radial, linear, air cushion
- Material
- carbon, aluminum
- Other characteristics
- thrust
- Inside diameter
13 mm
(0.51 in)- Length
52.8 mm
(2.08 in)
Description
Thrust Air Bushings 3 way Frictionless 0.41 Mpa (60psi)
Housing Material/Finish - 7075 Aircraft Quality Aluminum/ Mil Spec Hard Anodize
Input Pressure - .28 Mpa to .68 max Mpa
Porous Material - Carbon
Pressure Port Threads - M3 x 0.5
Lifetime - Infinite
Radial Load Capacity - 43.2 N (9.7 lbs)
Thrust Load Capacity - 81.4 N (18.3 lbs)
Radial Stiffness - 11 N/μ m (0.06 lbs/μ in)
Pitch Moment Max - 0.8 N-m (7.5 lbs-in)
Thrust Bushing Outside Diameter (OD) - 31.75 mm + .13/-.00
Bushing Weight - 86 g
Recommended Shaft Outside Diameter (OD) - 13.00 mm - .02
Housing Bore Size O-Ring Method - 32.13 mm + .000/-.127
Housing Bore Size Light Press Fit Method - 31.775 mm + .000/-.025
