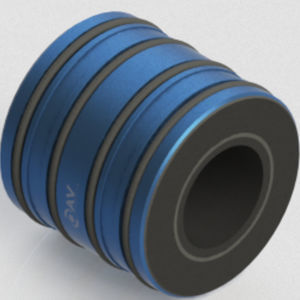

Thrust bearing unit OAVTR60i20radialair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- thrust, radial, air cushion
- Material
- aluminum
- Other characteristics
- housed, high-performance
- Inside diameter
20 mm
(0.79 in)- Outside diameter
60 mm
(2.36 in)- Length
16.5 mm
(0.65 in)
Description
Thrust Air Bearings 3 way Frictionless 0.41 Mpa (60 psi)
Housing Material/Finish - 7075 Aircraft Quality Aluminum
Input Pressure - 40 psi - 100 max psi
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Radial Load Capacity - 52.0 N (11.7 lbs)
Thrust Load Capacity - 373.7 N (84.0 lbs)
Radial Stiffness - 0.03 lbs/μ in (5 N/μ m)
Pitch Moment Max - 10 lbs-in (1.1 N-m)
Bearing Weight - 95.7 g
Recommended Shaft Outside Diameter - 20 mm - .02
Flow Rate - 15.6 SCFH (7.4 NLPM)
Housing Bore Size Light Press Fit Method - 59.630 mm + .000/-.025
