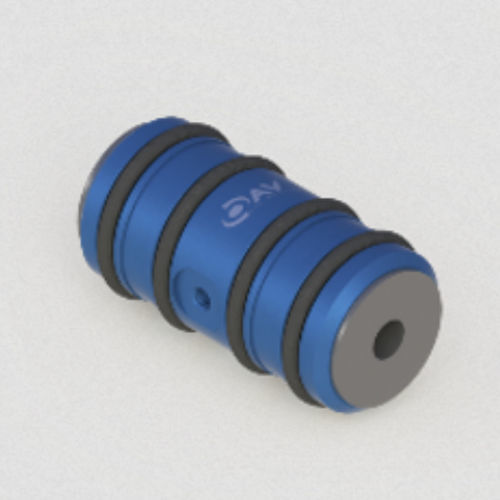

Radial plain bearing OAVTB16i04linearair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- radial, linear, air cushion
- Material
- aluminum
- Other characteristics
- thrust
- Inside diameter
4 mm
(0.16 in)- Length
33 mm
(1.3 in)
Description
Thrust Air Bushings 3 way Frictionless 0.41 Mpa (60 psi)
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Input Pressure - .28 Mpa to .68 max Mpa
Porous Material - Carbon
Pressure Port Threads - M3 x 0.5
Lifetime - Infinite
Radial Load Capacity - 9.3 N (2.1 lbs)
Thrust Load Capacity - 16.0 N (3.6 lbs)
Radial Stiffness - 5 N/μ m (0.03 lbs/μin)
Pitch Moment Max - 0.125 lbs-in (0.013 N-m)
Thrust Bushing Outside Diameter (OD) - 16.10 mm + .13/-.00
Bushing Weight - 13.8 g
Recommended Shaft Outside Diameter (OD) - 4.00 mm - .02
Housing Bore Size O-Ring Method - 16.79 mm + .000/-.127
Housing Bore Size Light Press Fit Method - 16.125 mm + .000/ -.025
