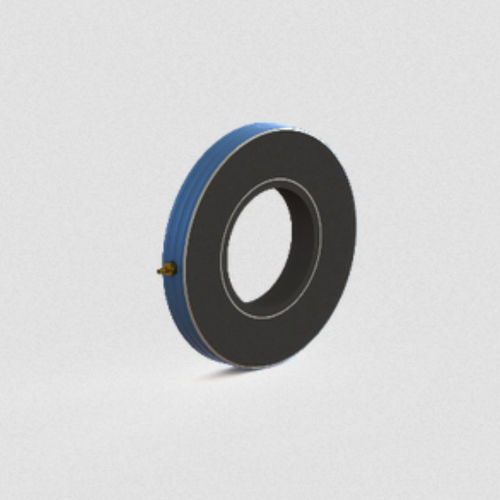

Thrust bearing unit OAVTR150i75radialair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- thrust, radial, air cushion
- Material
- aluminum
- Other characteristics
- housed, high-performance
- Inside diameter
75 mm
(2.95 in)- Outside diameter
150 mm
(5.91 in)- Length
19.6 mm
(0.77 in)
Description
Thrust Air Bearings 3 way Frictionless 0.41 Mpa (60 psi)
Housing Material/Finish - 7075 Aircraft Quality Aluminum
Input Pressure - 40 psi - 100 max psi
Porous Material - Carbon
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Radial Load Capacity - 286.5 N (64.4 lbs)
Thrust Load Capacity - 2215.2 N (498.0 lbs)
Radial Stiffness - 0.20 lbs/μ in (34.8 N/μ m)
Pitch Moment Max - 63 lbs-in (7.1 N-m)
Bearing Weight - 476.4 g
Recommended Shaft Outside Diameter (OD) - 75 mm - .02
Flow Rate - 42.1 SCFH (19.9 NLPM)
Housing Bore Size Light Press Fit Method - 150.04 mm + .000/-.04
