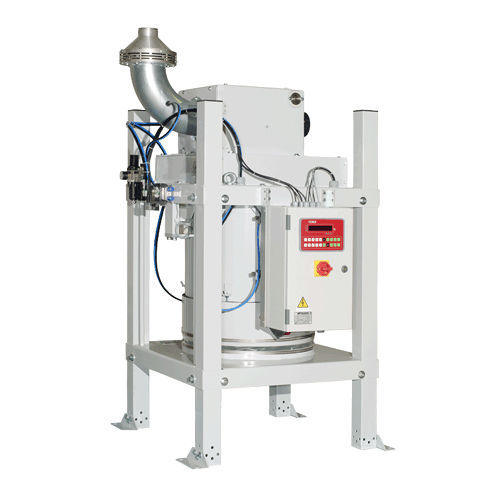

Mass flow meter ND series

for solidsverticalstainless steel

Electronic flow measurers for products obtained by milling process. On request, the parts in contact with the product can be supplied in stainless steel. Strong and compact structure, designed and realized according to the most restrictive sanitation standards. The use of technology by batch bins and the particular weighing cycle ensure high accuracies. The high reliability and minimum maintenance are ensured thanks to the reduced number of moving parts and the use of high quality components. Depending on the treated products and required flows, there are two types of flow measurers: the tubular version and the standard version. • The tubular version (from model ND 25 to ND 220) is useful when the compliance with the strictest sanitation standards is required. There aren’t parts in which contamination can occur. All the control elements (batch bins, pneumatic cylinders and limit switches) are positioned externally thereby eliminating direct contact with the product and the wear of the same. • The standard version (from model ND 320 to ND 2100), instead of the previous version, is characterized by a traditional design. The weighing container and the outer casing of this type of flow measurer (easily opened for quick cleaning and maintenance) are enclosed in the outer frame to ensure tightness. The weighing container is complete with double door bottom and pneumatic opening for weighing discharge. If required, flow measurers can be supplied complete with a plant yield control system (Ocrim ORMA system), which monitors weight and capacity for each measurer. The plant yield control system displays numerically and graphically valuable information on the plant yield.
