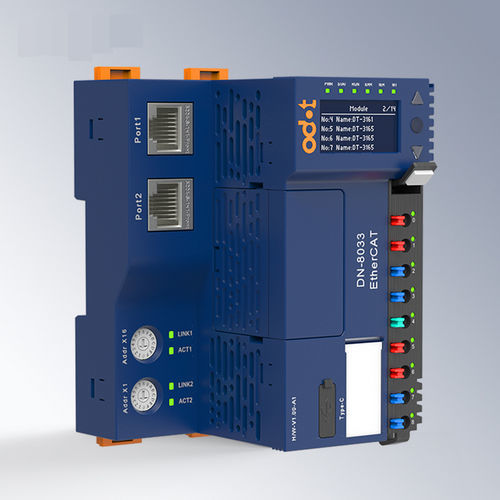

EtherCAT communication module DN-8033

Ethernet2 portDIN rail

EtherCAT Network AdapterThe DN8033 network adapter supports the standard EtherCAT protocol, with Ethernet supporting 100Mbit/s communication speed.The module supports up to 32 IO modules extension, with a maximum input of process data of 1024 bytes and a maximum output of 1024 bytes, allowing flexible selection of IO modules to be paired with the adapter.The module supports SDO master configuration function and can be configured by the EtherCAT master software.Features a high-speed redundant backplane bus, with a full load refresh cycle of 0.6ms.Two-stage installation for convenience, staggered layout spring light guide terminals, and pluggable terminals for easy maintenance and replacement. Wiring diameter: 0.2mm² (AWG 24) ~ 1.5mm² (AWG 16).The internal bus and system power and field power are completely isolated to avoid field equipment signals interfering with module internal communications.Supports communication diagnostics and extended module diagnostic function, with indicator lights for operating status and communication status.The OLED screen allows viewing of module-related parameters and acquiring important information without software.Technical ParametersGeneral ParametersModule Consumption112mA@24VDCSystem Power19.2~28.8VDC (Nominal: 24VDC)Anti-inversion protection: supportInternal Bus Supply CurrentMax. 2A@5VDCField Power19.2~28.8VDC (Nominal: 24VDC)Field Power CurrentMax. DC 8AWiring DiameterMin. 0.2mm² (AWG24)Max. 1.5mm² (AWG16)Terminal PluggableSupportThe Maximum Number of Expansion Modules32Diagnosis FunctionCommunication diagnostics, extended module status diagnosticsBackplane BusDouble bus redundancyInstallation35mm DIN-RailDimension119*83*80mmProduct CertificationCE CertificationCommunication ParametersProtocolEtherCAT slavePort2*RJ45Line LengthMaximum 100m (segment length) between 2 sitesTransmission Speed100 MbpsMaximum Number of Input/Output BytesInput: 1024 BytesOutput: 1024 BytesSite Alias SettingsDial switch or software configurationEnvironment ParametersHorizontal Installation Operating Temperature-35℃~60℃Vertical Installation Operating Temperature-35℃~50℃Storage Temperature-40℃~85℃Environment Humidity5%~95%RH (No condensation)Installation Altitude<2000mPollution DegreeⅡProtection GradeIP20Mechanical PropertiesComply with IEC60068-2-6, IEC6008-2-27Insulation WithstandComply with IEC61131-2EMC PerformanceComply with IEC61131-2, IEC61000-4ESD: Contact discharge ±6kV, Air discharge ±8kV, Performance level A;SURGE: Common mode ±2kV, Differential mode ±1kV, Performance level A;EFT: ±2kV, Performance level AKey Features / Technical SpecificationsSupports standard EtherCAT protocol, 100Mbit/s EthernetUp to 32 IO modules extensionMax input/output process data: 1024 bytes eachSDO master configuration via EtherCAT master softwareHigh-speed redundant backplane bus, 0.6ms refresh cycleTwo-stage installation, pluggable terminals, wiring diameter 0.2mm²–1.5mm²Complete isolation between internal bus/system power and field powerCommunication and module diagnostics with status indicatorsOLED screen for parameter viewingCE certified, IP20 protection, -35℃~60℃ operation
