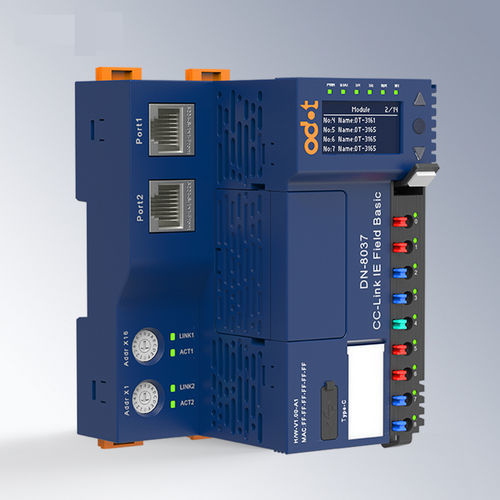

CC-Link communication module DN-8037

EthernetRJ452 port

CC-Link IE Field Basic Network Adapter - The DN-8037 Module supports standard CC-Link IE Field Basic protocol and features dual network port switch cascade functionality. - Supports up to 32 IO modules extension; RX/RY capacity up to 1024 (each station 64 bits), RWr/RWw capacity up to 512 words (each station 32 words); flexible selection of IO modules to pair with adapter. - Supports remote equipment station, up to 16 stations, with transmission distance up to 100m. - High-speed redundant backplane bus; refresh cycle of full load is 0.6ms. - Two-stage installation for convenience; staggered layout spring light guide terminals; pluggable terminal for easy maintenance and replacement; wiring diameter: 0.2mm² (AWG 24) ~ 1.5mm² (AWG 16). - Internal bus, system power, and field power are completely isolated to avoid field equipment signals interfering with module internal communications. - Supports communication diagnostics and extended module diagnostic functions, with indicator lights for operating and communication status. - OLED screen allows viewing of module-related parameters and acquiring important information without software. Technical Parameters General Parameter - Current Consumption: 93mA@24VDC - System Power: 19.2~28.8VDC (Nominal: 24VDC) Anti-inversion protection: support - Internal Bus Supply Current: Max. 2A@5VDC - Field Power: 19.2~28.8VDC (Nominal: 24VDC) - Field Power Current: Max. DC 8A - Wirring Diameter: Min. 0.2mm² (AWG24) Max. 1.5mm² (AWG16) - Terminal Pluggable: Support - The Maximum Number of Expansion Modules: 32 - Diagnosis Function: Communication diagnostics, extended module status diagnostics - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*83*80mm - Product Certification: CE Certification Communication Parameters - Protocol: CC-Link IE Field Basic - Interface: 2*RJ45, integrated switch capabilities - Line Length: Maximum 100m (segment length) between 2 sites - Transmission Speed: 100 Mbps, full-duplex - RX/RY: Max. 1024 Bits - RWr/RWw: Max. 512 Words - Station Type: Remote equipment station - Number of Logical Stations Occupied: 1~16 - Site Alias Settings: DIP switch or software configuration - Diagnostic Feature: Communication diagnostics, extended module status diagnostics - Default IP Address: 192.168.3.100 Environment Parameters - Horizontal Installation Operating Temperature: -35°C ~ 60°C - Vertical Installation Operating Temperature: -35°C ~ 50°C - Storage Temperature: -40°C ~ 85°C - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: Ⅱ - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge ±6kV, Air discharge ±8kV, Performance level A; SURGE: Common mode ±2kV, Differential mode ±1kV, Performance level A; EFT: ±2kV, Performance level A) Key Features / Technical Specifications: - Supports CC-Link IE Field Basic protocol - Dual network port switch cascade - Up to 32 IO modules extension - RX/RY: up to 1024 bits; RWr/RWw: up to 512 words - Remote equipment station: up to 16 stations, 100m transmission - High-speed redundant backplane bus, 0.6ms refresh cycle - Pluggable terminals, wiring diameter 0.2mm²–1.5mm² - Complete isolation between internal bus, system power, and field power - Communication and module diagnostics, indicator lights - OLED screen for parameter viewing - CE Certification - Operating temperature: -35°C to 60°C (horizontal), -35°C to 50°C (vertical) - Protection grade: IP20 - Installation: 35mm DIN-Rail - Dimensions: 119*83*80mm
