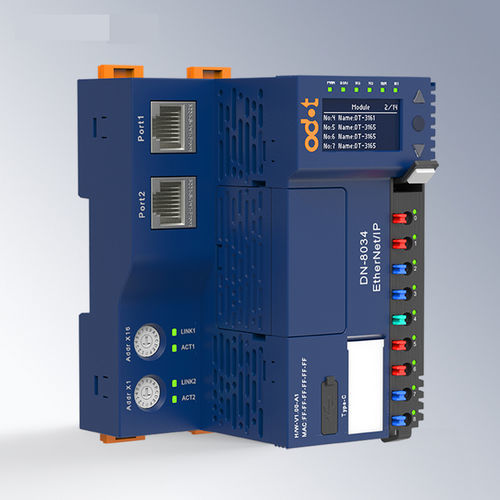

EtherNet/IP communication module DN-8034

RJ452 portDIN rail

EtherNet/IP Network Adapter Module Features - DN8034 Network adapter supports standard EtherNet/IP protocol and dual network port switch cascade function. - The module supports up to 32 IO modules extension, with a maximum input of process data of 1024 bytes and a maximum output of 1024 bytes, allowing flexible selection of IO modules to be paired with the adapter. - High-speed redundant backplane bus, with a full load refresh cycle of 0.6ms. - Two-stage installation for convenience, staggered layout spring light guide terminals, and pluggable terminals for easy maintenance and replacement. Wiring diameter: 0.2mm² (AWG 24) ~ 1.5mm² (AWG 16). - Internal bus and system power are completely isolated from field power, preventing field equipment signals from interfering with module internal communications. - Supports communication diagnostics, extended module diagnostic function, with indicator lights for operating status and communication status. - OLED screen allows viewing of module-related parameters and acquisition of important information without software. Technical Parameters General Parameter - Current Consumption: 104mA@24VDC - System Power: 19.2~28.8VDC (Nominal: 24VDC) Anti-inversion protection: support - Internal Bus Supply Current: Max. 2A@5VDC - Field Power: 19.2~28.8VDC (Nominal: 24VDC) - Field Power Current: Max. DC 8A - Wiring Diameter: Min. 0.2mm² (AWG24), Max. 1.5mm² (AWG16) - Terminal Pluggable: Support - The Maximum Number of Expansion Modules: 32 - Diagnosis Function: Communication diagnostics, extended module status diagnostics - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*83*80mm - Product Certification: CE Certification Communication Parameters - Protocol: EtherNet/IP slave - Interface: 2*RJ45, integrated switch capabilities - Line Length: Maximum 100m (segment length) between 2 sites - Transmission Speed: 10/100 Mbps, full-duplex - Maximum Number of Input/Output Bytes: Input: 1024 Bytes, Output: 1024 Bytes - IP Address Setting: Dial switch or IO Config software - Default IP Address: 192.168.1.200 Environment Parameters - Horizontal Installation Operating Temperature: -35℃~60℃ - Vertical Installation Operating Temperature: -35℃~50℃ - Storage Temperature: -40℃~85℃ - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: Ⅱ - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge ±6kV, Air discharge ±8kV, Performance level A; SURGE: Common mode ±2kV, Differential mode ±1kV, Performance level A; EFT: ±2kV, Performance level A) Key Specifications - Supports up to 32 IO modules extension - Max input/output process data: 1024 bytes each - High-speed redundant backplane bus (0.6ms refresh cycle) - Dual RJ45 ports with integrated switch - DIN-rail mount (35mm) - Operating temperature: -35℃ to 60℃ (horizontal), -35℃ to 50℃ (vertical) - CE certified, IP20 protection
