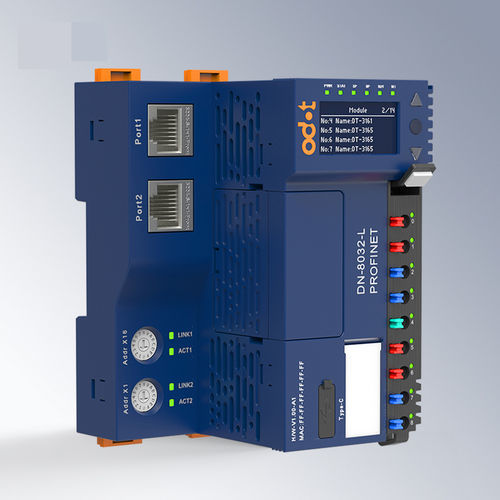

ProfiNet communication module DN-8032-L

2 portremoteDIN rail

PROFINET Network Adapter - The DN8032-L network adapter supports standard PROFINET IO Device protocol and features dual network port switch cascade function. - The module supports up to 32 IO modules expansion. The maximum input of process data is 1440 bytes (each submodule is 1 byte and is associated with the state of the input data), and the maximum output is 1440 bytes (each submodule is 1 byte and is associated with the state of the output data). Flexible selection of IO modules to be paired with the adapter. - The module does not support MRP media redundancy and redundant ring network, but supports RT real-time communication mode. The minimum RT real-time communication period is 1ms. - Module features a high-speed redundant backplane bus, with a full load refresh cycle of 0.6ms. - Two-stage installation for convenience, staggered layout spring light guide terminals, and pluggable terminals for easy maintenance and replacement. Wiring diameter: 0.2mm² (AWG 24) ~ 1.5mm² (AWG 16). - Internal bus and system power are completely isolated from field power, preventing field equipment signals from interfering with module internal communications. - Supports communication diagnostics and extended module diagnostic functions, with indicator lights for operating status and communication status. - The OLED screen allows viewing of module-related parameters and acquiring important information without software. Technical Parameters General Parameter - Current Consumption: 107mA@24VDC - System Power: 19.2~28.8VDC (Nominal: 24VDC) - Anti-inversion protection: support - Internal Bus Supply Current: Max. 2A@5VDC - Field Power: 19.2~28.8VDC (Nominal: 24VDC) - Field Power Current: Max. DC 8A - Wiring Diameter: Min. 0.2mm² (AWG24), Max. 1.5mm² (AWG16) - Terminal Pluggable: Support - The Maximum Number of Expansion Modules: 32 - Diagnosis Function: Communication diagnostics, extended module status diagnostics - Backplane Bus: Double bus redundancy - Installation: 35mm DIN-Rail - Dimension: 119*83*80mm - Product Certification: CE Certification Communication Parameters - Protocol: PROFINET IO Device - Input: 1440 bytes - Output: 1440 bytes - Transmission Speed: 10/100 Mbit/s - RT: Support, RT real-time communication minimum period is 1ms - IRT: Not support - MRP: Not support - MRPD: Not support - Device Name Setting: DIP switch or software configuration Environment Parameters - Horizontal Installation Operating Temperature: -35℃~60℃ - Vertical Installation Operating Temperature: -35℃~50℃ - Storage Temperature: -40℃~85℃ - Environment Humidity: 5%~95%RH (No condensation) - Installation Altitude: <2000m - Pollution Degree: Ⅱ - Protection Grade: IP20 - Mechanical Properties: Comply with IEC60068-2-6, IEC6008-2-27 - Insulation Withstand: Comply with IEC61131-2 - EMC Performance: Comply with IEC61131-2, IEC61000-4 - ESD: Contact discharge ±6kV, Air discharge ±8kV, Performance level A - SURGE: Common mode ±2kV, Differential mode ±1kV, Performance level A - EFT: ±2kV, Performance level A Key Features / Technical Specifications - Supports standard PROFINET IO Device protocol - Dual network port switch cascade function - Expansion up to 32 IO modules - Max input/output process data: 1440 bytes - Does not support MRP/IRT/MRPD - Supports RT real-time communication (min. 1ms) - High-speed redundant backplane bus (refresh cycle 0.6ms) - Pluggable terminals, wiring diameter 0.2mm²–1.5mm² - Complete isolation between internal bus/system power and field power - Communication and module diagnostics, OLED display - CE certified, IP20 protection - Operating temperature: -35℃ to 60℃ (horizontal), -35℃ to 50℃ (vertical) - Storage temperature: -40℃ to 85℃ - Humidity: 5%–95% RH (no condensation) - Installation altitude: <2000m - Dimensions: 119*83*80mm
