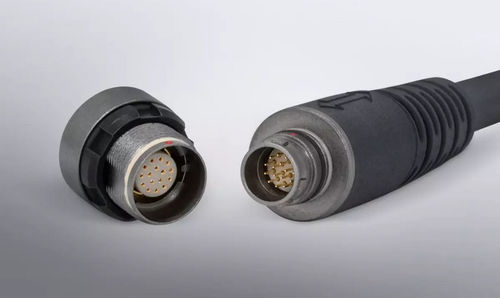

Round connector ODU AMC® High-Densitydataelectrical power supplyscrew-locked
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- round
- Connection type
- screw-locked
- Electrical characteristics
- high-density
- Material
- metal, aluminum, chromed metal
- Domain
- for industrial applications, for medical applications, for telecom applications
- Protection class
- IP68, IP69K
- Other characteristics
- shielded, high-speed
- Primary current
Min.: 0 A
Max.: 15 A
- Data rate
Min.: 0.63 b/s
Max.: 0.63 b/s
- Operating temperature
Min.: -51 °C
(-60 °F)Max.: 125 °C
(257 °F)
Description
Overview
Premium quality in a compact design: The ODU AMC® High-Density Series offers a contact density of up to 27 contacts for connectors with a diameter of 7 mm or larger. Even under adverse conditions, these connectors ensure a long service life, as well as excellent shock and vibration resistance.
Key Features:
Premium quality in a compact design: The ODU AMC® High-Density Series offers a contact density of up to 27 contacts for connectors with a diameter of 7 mm or larger. Even under adverse conditions, these connectors ensure a long service life, as well as excellent shock and vibration resistance.
- Waterproof in accordance with IP68 / IP6K9K
- Screw-lock function or break-away function
- Operating temperature range: –51 °C to +125 °C
- 2–27-pin / 3 sizes
- Long service life with more than 5,000 mating cycles
- Diameter between 7 mm and 15 mm
Key Features:
- High contact density
- High-speed data technology
- Salt water resistance
- 360° shielding
