Data connector AMC®electrical power supplyEthernetUSB
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- Ethernet, USB
- Shape
- circular
- Connection type
- blind mate, push-pull, screw
- Material
- metal, brass, aluminum
- Product applications
- for measurement instruments, test and measurement technology, for security applications
- Domain
- for harsh environments, for harsh conditions, for data transmission, safety, for exterior security applications, for indoor security applications
- Protection class
- IP68, IP69K
- Other characteristics
- waterproof, shielded, high-speed, breakaway
- Operating temperature
Max.: 125 °C
(257 °F)Min.: -51 °C
(-60 °F)
Description
Overview

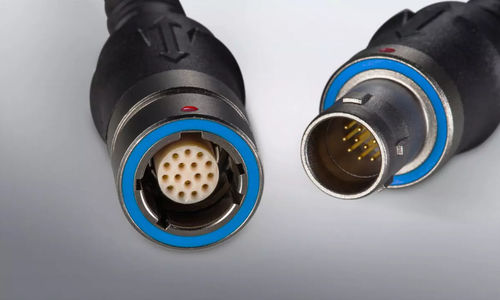

With the ODU AMC®, we offer you top-quality connectors for military and security applications. These can be customized to meet your specific system requirements. The ODU AMC® is available in two locking variants—push-pull or break-away—as well as with straight or right-angled standard overmolding.
Key Features
With the ODU AMC®, we offer you top-quality connectors for military and security applications. These can be customized to meet your specific system requirements. The ODU AMC® is available in two locking variants—push-pull or break-away—as well as with straight or right-angled standard overmolding.
- Waterproof according to IP6K9K rating
- Operating temperature range from -51 °C to +125 °C
- 3–55 pins (push-pull), 3–37 pins (break-away)
- High-speed data technology
- 6 sizes (Push-Pull), 5 sizes (Break-Away)
Key Features
- Push-pull locking or break-away function
- Mechanical and optical color coding
- 360° shielding
- Over 5,000 mating cycles
