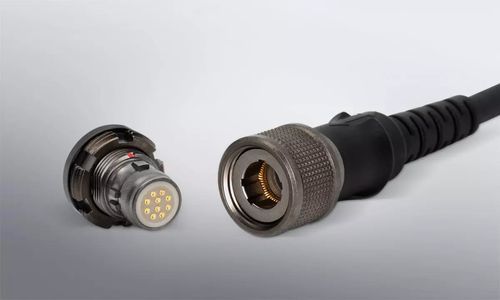

Data connector ODU AMC® Easy-Cleanelectrical power supplyHDMIsignal
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Format
- HDMI, power, signal, USB 2.0, USB 3.2 Gen1x1
- Shape
- circular
- Connection type
- push-pull, screw
- Electrical characteristics
- power
- Material
- Pogo-Pin, ruthenium plating, with aluminum housing
- Domain
- for harsh environments, communications, Defense, Military, Rugged Electronics
- Protection class
- IP69K, IP68K
- Other characteristics
- 6-20 pin, for numerous mating cycles, 7-19 Contacts, EMC Shielding 360°
- Operating temperature
Min.: -51 °C
(-60 °F)Max.: 125 °C
(257 °F)
Description
Overview
ODU AMC® Easy-Clean ensures reliable transmissions and can be cleaned quickly even under the most adverse conditions. Thanks to the connector's practical design and the use of an internal pogo pin contact system, you can easily clean the connector of soiling, even under demanding military conditions.
Key Features:
ODU AMC® Easy-Clean ensures reliable transmissions and can be cleaned quickly even under the most adverse conditions. Thanks to the connector's practical design and the use of an internal pogo pin contact system, you can easily clean the connector of soiling, even under demanding military conditions.
- Waterproof in accordance with protection classes IP6K8 and IP6K9K
- Operating temperature range from -51 °C to +125 °C
- 7–19-pin
- Low space requirements, minimal physical effort required for mating
- 3 sizes
Key Features:
- Extremely robust and sturdy housing
- Quick and easy cleaning
- Contact inserts with pogo pins
- Over 5,000 mating cycles
