Round connector MEDI-SNAP®
hybridwire-to-wirepush-pull

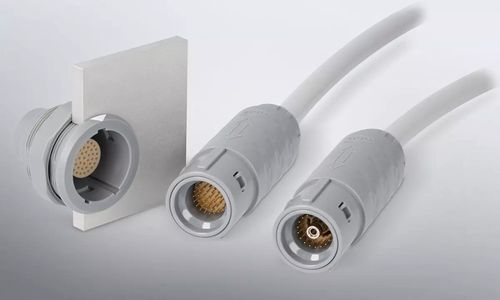

Round connector - MEDI-SNAP® - ODU GmbH & Co. KG - hybrid / wire-to-wire / push-pull
Round connector - MEDI-SNAP® - ODU GmbH & Co. KG - hybrid / wire-to-wire / push-pull
Round connector - MEDI-SNAP® - ODU GmbH & Co. KG - hybrid / wire-to-wire / push-pull - image - 2
Round connector - MEDI-SNAP® - ODU GmbH & Co. KG - hybrid / wire-to-wire / push-pull - image - 3
Round connector - MEDI-SNAP® - ODU GmbH & Co. KG - hybrid / wire-to-wire / push-pull - image - 4
Round connector - MEDI-SNAP® - ODU GmbH & Co. KG - hybrid / wire-to-wire / push-pull - image - 5
Round connector - MEDI-SNAP® - ODU GmbH & Co. KG - hybrid / wire-to-wire / push-pull - image - 6
Add to favorites
Compare this product
Go to the ODU GmbH & Co. KG website for more information

Characteristics

Type
hybrid
Format
wire-to-wire
Shape
round
Connection type
push-pull
Material
plastic
Domain
industrial, for medical applications, measurement
Other characteristics
lightweight
Voltage

Min.: 0 V

Max.: 1,000 V

Description

Overview
The space-saving design of the ODU MEDI-SNAP® enables high performance in the smallest of spaces thanks to its compact style, high contact density, and various angle options. We offer flexible complete systems consisting of push-pull or break-away connectors, cables with suitable assembly and mechanical or optical coding.

  • High-voltage solutions for up to 1,000 V AC
  • Touch protection in accordance with IEC 60601-1 (up to 2 MOPP / 2 MOOP)
  • Minimal requirements in terms of installation and maintenance
  • Transmission of various media
  • Fully sterilizable despite plastic housing

Key Features:
  • Push-pull locking or break-away function
  • High efficiency due to low weight
  • At least 5,000 mating cycles
  • Cable assembly included
