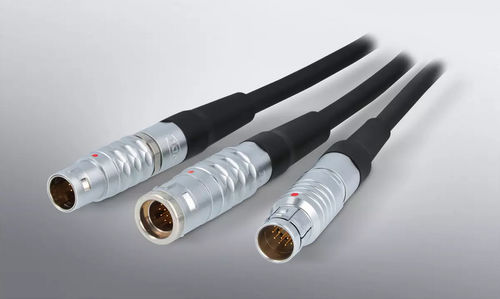

Round connector ODU MINI-SNAP®dataelectrical power supplycrimp
Add to favorites
Compare this product
Characteristics
- Type
- data, electrical power supply
- Shape
- round
- Connection type
- crimp, push-pull, through-hole
- Material
- metal
- Protection class
- IP68, IP50
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)
Description
Overview
ODU MINI-SNAP® Connectors in four series: L, K, B, and F – characterized by robust metal housings with different surfaces. With push-pull locking or break-away function, these metal circular connectors ensure secure and stable connections. And with an interface diameter of just 6.4 mm, they can also be installed in the smallest spaces.
Key Features:
ODU MINI-SNAP® Connectors in four series: L, K, B, and F – characterized by robust metal housings with different surfaces. With push-pull locking or break-away function, these metal circular connectors ensure secure and stable connections. And with an interface diameter of just 6.4 mm, they can also be installed in the smallest spaces.
- L, K, and B Series:
- Push-pull locking or break-away function
- Keying over pin and groove
- 2–40 pins / mixed assembly
- 3 termination types: Solder, crimp, PCB
- F Series:
- Push-pull locking or break-away function
- Half-shell coding
- 2–27-pin / mixed assembly
- 3 termination types: Solder, crimp, PCB
Key Features:
- Reliable and flexible
- Over 5,000 mating cycles
- VERSATILE CONFIGURATION OPTIONS
- Protection classes IP50 and IP68
