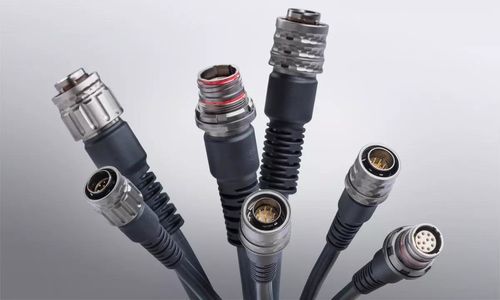

Data connector ODU AMC® T seriessignalpowerHigh-Speed Data
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- power, signal, High-Speed Data
- Shape
- circular
- Connection type
- push-pull, locking, screw-locked, Thread-Lock
- Electrical characteristics
- power, EMI
- Material
- with aluminum housing, Tin-Nickel Plating
- Product applications
- for heavy-duty applications, radar, Tactical Radios
- Domain
- for heavy-duty applications, for robotics, Military, Defense
- Protection class
- IP69K, IP68K
- Other characteristics
- hermetically-sealed, field-attachable, with cable assembly, EMC, MiL, anti-vibration, breakaway, with machined contacts, 5–18 Contacts
- Operating temperature
Min.: -65 °C
(-85 °F)Max.: 175 °C
(347 °F)
Description
Overview
Despite the extremely rugged design of the ODU AMC® Series T, the connectors can be easily mounted outside the enclosure. Choose from three compatible locking options, cable connections, sizes, applications, and the number of contacts, depending on your requirements.
Key Features:
Despite the extremely rugged design of the ODU AMC® Series T, the connectors can be easily mounted outside the enclosure. Choose from three compatible locking options, cable connections, sizes, applications, and the number of contacts, depending on your requirements.
- Waterproof in accordance with MIL-STD-810 – IP6K9K rating
- Operating temperature range from –65 °C to +175 °C
- Sealed mechanical components, thus completely protected
- Suitable for MIL backshell and MIL crimp contacts
- High flexibility thanks to push-pull, break-away, or thread-lock function
Key Features:
- 3 locking options
- High vibration resistance
- Simple assembly process
- Cable assembly included
Catalogs
ODU AMC® Series T – Catalog
88 Pages
