Description

Overview

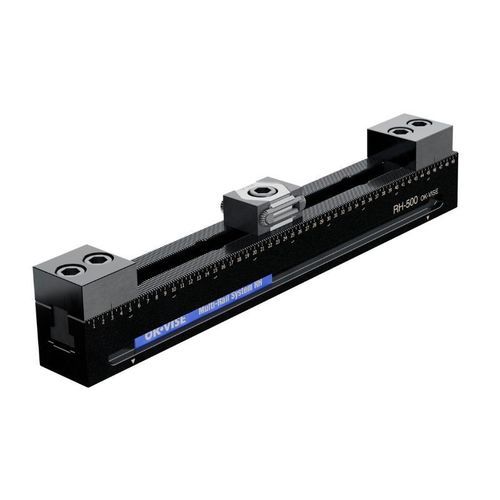

  • Flexible multi-clamping rail system designed to adapt quickly to a variety of workpiece sizes and applications. Multi-Rail RH accepts common clamp modules and allows fast reconfiguration of components for series production and job-shop setups.


Technical data
  • Compatible with F-series clamp modules
  • Maximum clamping force: up to 10 tons
  • Serration pitch: 2.5 mm
  • Profile size: 60 × 60 mm
  • Locating holes: 2 × Ø16 mm H7
  • Available lengths: 400–800 mm
  • Accuracy (serration to positioning hole): ±0.02 mm


Multi-Rail RH Sets (table)
Set Code | Length (mm) | Face type | N (Clamps) | Clamp model | N (Stoppers) | Stopper model | N (Workpieces) | Max. area for parts (mm) | Installation bolt set | Dimensions / PDF drawings | Step file (3D)
  • SRH-400-FS1S2 | 400 | Smooth | 1 | RHC-FS1 | 2 | RHS-S1 | 2 | 220 | Included | 10007378.pdf | SRH-400-FS1S2.stp
  • SRH-500-FS1S2 | 500 | Smooth | 1 | RHC-FS1 | 2 | RHS-S1 | 2 | 320 | Included | 10007378.pdf | SRH-500-FS1S2.stp
  • SRH-600-FS2S3 | 600 | Smooth | 2 | RHC-FS1 | 3 | RHS-S1 | 4 | 300 | Included | 10007378.pdf | SRH-600-FS2S3.stp
  • SRH-700-FS2S3 | 700 | Smooth | 2 | RHC-FS1 | 3 | RHS-S1 | 4 | 400 | Included | 10007378.pdf | SRH-700-FS2S3.stp
  • SRH-800-FS2S3 | 800 | Smooth | 2 | RHC-FS1 | 3 | RHS-S1 | 3 | 500 | Included | 10007378.pdf | SRH-800-FS2S3.stp
  • SRH-400-FR1R2 | 400 | Serrated | 1 | RHC-FR1 | 2 | RHS-R1 | 2 | 220 | Included | 10007378.pdf | SRH-400-FR1R2.stp
  • SRH-500-FR1R2 | 500 | Serrated | 1 | RHC-FR1 | 2 | RHS-R1 | 4 | 320 | Included | 10007378.pdf | SRH-500-FR1R2.stp
  • SRH-600-FR2R3 | 600 | Serrated | 2 | RHC-FR1 | 3 | RHS-R1 | 4 | 300 | Included | 10007378.pdf | SRH-600-FR2R3.stp
  • SRH-700-FR2R3 | 700 | Serrated | 2 | RHC-FR1 | 3 | RHS-R1 | 4 | 400 | Included | 10007378.pdf | SRH-700-FR2R3.stp
  • SRH-800-FR2R3 | 800 | Serrated | 2 | RHC-FR1 | 3 | RHS-R1 | 4 | 500 | Included | 10007378.pdf | SRH-800-FR2R3.stp


Installation
  • Each Multi-Rail set includes the bolt set required for installation on a grid platform. For T-slot tables, alternative installation components are required.


Notes
  • Nominal serration spacing is 2.50015 mm; for example, 200 serrations correspond to a nominal spacing of 500.030 mm. Account for this value when programming stopper positions.
  • The first locating hole can be used as a reference point for positioning or CAM programming.


Configuration options
  • Customized setups can be created by combining different modules from the Multi-Rail family to match specific workpiece sizes and clamping requirements.


Specifications
  • Profile size: 60 × 60 mm
  • Serration pitch: 2.5 mm
  • Locating holes: 2 × Ø16 mm H7
  • Available lengths: 400, 500, 600, 700, 800 mm
  • Maximum clamping force: up to 10 tons
  • Accuracy (serration to positioning hole): ±0.02 mm
