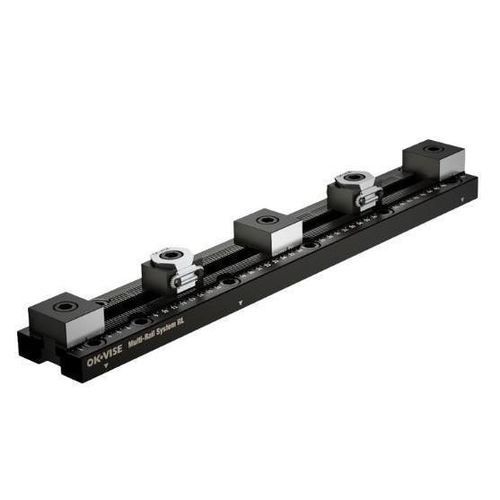

Clamping rail RL

Description
Flexible multi-clamping vise system for reliable, repeatable workholding and higher productivity. Multi-Rail RL adapts to various workpiece sizes; its modular components are reusable and can be reconfigured quickly for different applications and parts.

Technical data

• Structure: two individual pieces forming one rail
• Height: 25 mm
• Compatibility: B- and D-series clamp modules; uses the same mounting modules as the RM rail
• Maximum clamping force: up to 6 tons

Table: Multi-Rail RL Sets
Table headers: Set Code | Picture | Length (mm) | Face type | N (Clamps) | Clamp model | N (Stoppers) | Stopper model | N (Workpieces) | Max. area for parts (mm) | Installation bolt set | Dimensions | Step file (3D) Details
SRL-300-DS1S2 | SRL-300-DS1S2-560x263.png | 300 | Smooth | 1 | RMC-DS | 2 | RMS-S | 2 | 175 | Included | (PDF drawings available) | SRL-300-DS1S2.stp
SRL-400-DS1S2 | SRL-400-DS1S2-560x263.png | 400 | Smooth | 1 | RMC-DS | 2 | RMS-S | 2 | 275 | Included | (PDF drawings available) | SRL-400-DS1S2.stp
SRL-300-DR1R2 | SRL-300-DS1S2-560x263.png | 300 | Serrated | 1 | RMC-DR | 2 | RMS-R2 | 2 | 175 | Included | (PDF drawings available) | SRL-300-DR1R2.stp
SRL-400-DR1R2 | SRL-400-DS1S2-560x263.png | 400 | Serrated | 1 | RMC-DR | 2 | RMS-R2 | 2 | 275 | Included | (PDF drawings available) | SRL-400-DR1R2.stp

Notes

• Nominal serration spacing is 2.50015 mm; for example, 200 serrations correspond to a nominal spacing of 500.030 mm. Account for this value when programming stopper positions.
• The first locator hole can be used as a reference point for positioning or CAM programming.

Configuration options
In addition to the predefined sets available on this product page, customized setups can be created by combining different modules from the Multi-Rail product family. This allows the rail configuration to be adapted to specific workpiece sizes and clamping requirements.

Specifications

• Product name: Multi-Rail RL
• Structure: two individual pieces forming one rail
• Height: 25 mm
• Compatibility: B-series and D-series clamp modules; uses the same mounting modules as RM rail
• Maximum clamping force: up to 6 tons
• Available set codes and lengths: SRL-300-DS1S2 (300 mm), SRL-400-DS1S2 (400 mm), SRL-300-DR1R2 (300 mm serrated), SRL-400-DR1R2 (400 mm serrated)
• Included: installation bolt set for grid platform (T-slot installation requires separate components)
