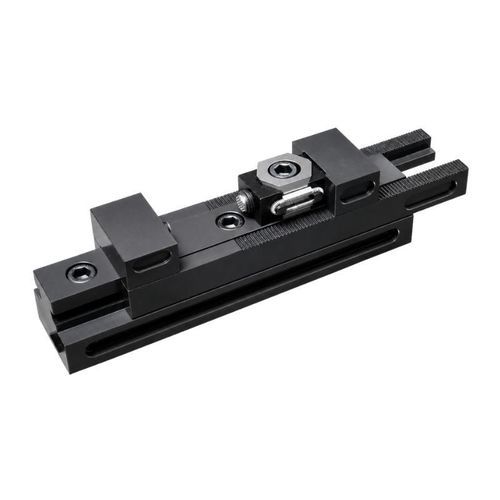

Multiple clamping vise CRH-K250for machine toolsfor milling machinesinterchangeable jaws
Add to favorites
Compare this product
Characteristics
- Applications
- for machine tools, for milling machines
- Configuration
- interchangeable jaws
- Other characteristics
- self-centering, multiple clamping vise
- Max. clamping range
Max.: 120 mm
(5 in)Min.: 0 mm
(0 in)- Weight
Max.: 5.36 kg
(11.817 lb)Min.: 5.36 kg
(11.817 lb)
Description
Overview
The CRH-K250 is a combo-rail clamping unit offering three configurable operating modes: Floating, Centralising and Machine vise. It clamps workpieces from 0 to 120 mm and has a base height of 50 mm. Operating mode is changed by replacing the supplied jaw or wedge components.
Key features
Technical details
Typical applications
Documentation & ordering
PDF drawings and STEP (STP) files are provided for integration and verification. Request spare jaws, wedges or ordering details from the supplier.
The CRH-K250 is a combo-rail clamping unit offering three configurable operating modes: Floating, Centralising and Machine vise. It clamps workpieces from 0 to 120 mm and has a base height of 50 mm. Operating mode is changed by replacing the supplied jaw or wedge components.
Key features
- Model: CRH-K250
- Product family: CRH-K series (Combo-Rail unit)
- Operating modes: Floating, Centralising, Machine vise
- Clamping range: 0–120 mm
- Base height: 50 mm
- Includes interchangeable jaw and wedge components
- Weight: 5360 g
- Dimensions: PDF drawings available
- 3D CAD: STEP (STP) file available for download
Technical details
- Type: CRH-K250
- Workpiece min–max: 0–120 mm
- Weight: 5360 g
- Dimensions: see PDF drawings in product documents
- 3D file: STEP (STP) available
Typical applications
- CNC machining and milling fixtures
- Inspection and assembly stations
- Flexible fixturing requiring multiple clamping modes
Documentation & ordering
PDF drawings and STEP (STP) files are provided for integration and verification. Request spare jaws, wedges or ordering details from the supplier.
