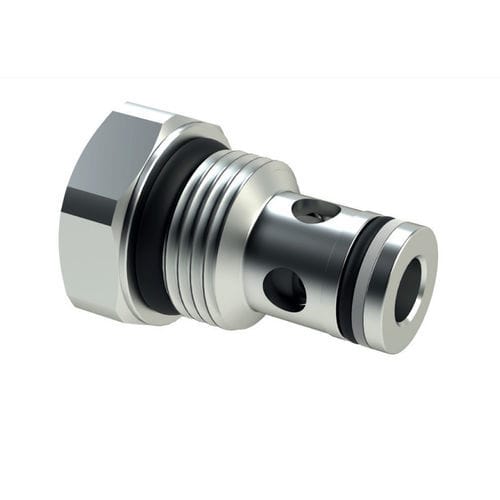

Poppet check valve CUR10NcartridgeUNFsteel
Add to favorites
Compare this product
Characteristics
- Type
- poppet, cartridge
- Connexion
- UNF
- Material
- steel
- DN
177.8 mm
(7 in)- Pressure
Max.: 350 bar
(5,076.3 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 40 l/min
(10.57 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description
CARTRIDGE CHECK VALVE, 7/8-14 UNF CAVITY, POPPET VERSION
CUR10N cartridge check valve allows free oil passing through one direction stopping it on the opposite side.
CUR10N is a cartridge check valve, 7/8-14UNF threading. The oil passage is allowed from port 1 to port 2 while a poppet stops i t on the opposite direction. The cracking pressure is fiexed at 1 bar. The max working pressure for CUR10N is 350 bar (5057 PSI) with flow up to 40 l/min.-10,6 gpm. The hardened and ground poppet, made of high resistance steel, ensures the valves sealing. The external components, all made of steel, are protected from corrosion by a zinc plating treatment.
