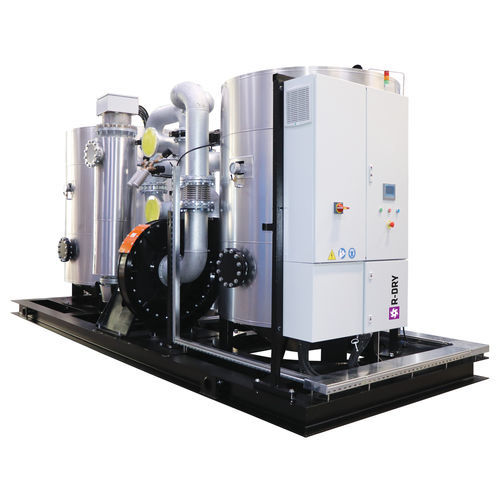

Heat-of-compression compressed air dryer R-DRY BVA
blower purgehigh-qualityhigh-capacity

heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
heat-of-compression compressed air dryer
Add to favorites
Compare this product


Characteristics

Technology
heat-of-compression
Other characteristics
blower purge, high-quality, high-capacity, large
Capacity

Min.: 390 m³/h (13,772.72 ft³/h)

Max.: 20,200 m³/h (713,356.27 ft³/h)

Working pressure

Min.: 4 bar (58.015 psi)

Max.: 11 bar (159.542 psi)

Description

R-DRY 400-20000 adsorption dryers are designed for continuous separation of water vapour from compressed air thus reducing dew point. Operation of dryer requires two columns operated alternately. Adsorption takes place under pressure in first column while second column regenerates with a heated ambient air or purge. A dryer consists of two columns, filled with desiccant beads, blower, heater, controller with LCD dicplay, valves, manometers, and support construction. Proven robust design enables efficient and reliable operation, fast installation and simple maintenance. Characteristics: • operating presure: 4 to 11 bar • operating temp. range: 1,5 to 50 °C • pressure dew points: -40 °C • flow rate: 390 to 20.200 Nm³h Applications: • compressed air systems
