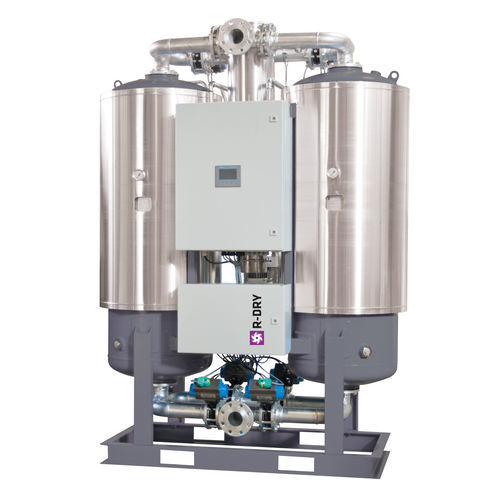

Heatless desiccant compressed air dryer R-DRY BVL series

high-qualityhigh-performancewater-cooled

R-DRY BVL 400-10000 adsorption dryers are designed for continuous separation of water vapour from compressed air thus lowering the dew point. R-Dry BVL dryers have two columns that operate alternately. Adsorption takes place under pressure in the first column while the second column is regenerated (heated ambient air for desorption + cooling with water cooled air in a closed loop). Due to cooling in a closed loop BVL type of dryer is suitable for applications where low PDP is required at hotter and more humid ambient conditions. Due to cooling with water cooled air in a closed loop BVL type of dryers don’t consume any compressed air for the operation. A dryer consists of two columns, filled with desiccant beads, blower, heater, air-water heat exchanger, controller with an LCD display, valves, manometers, and support construction. A proven and robust design enables efficient and reliable operation, fast installation and simple maintenance. Characteristics • operating presure: 4 to 11 bar • ambient operating temp. range: 1,5 to 50 °C • inlet air temperature range: 1,5 to 42,5 °C • pressure dew points: -40 °C • flow rate: 390 to 20.200 Nm³/h • average compressed air consumption: 0 % Applications • compressed air systems
