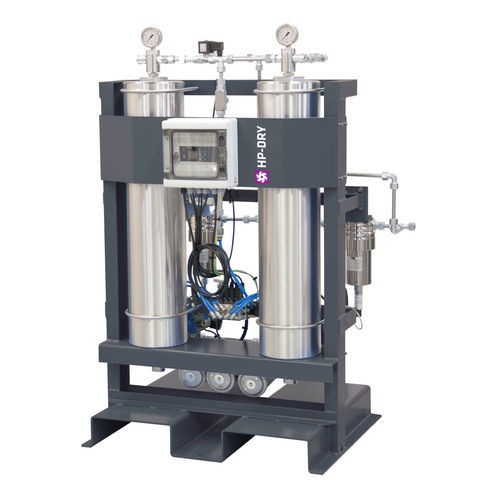

HP-DRY adsorption dryers have been designed for continuous separation of water vapour from compressed air thus reducing dew point. Operation of the dryer requires two columns operated alternately. Adsorption takes place under pressure in the first column while the second column regenerates with a portion of already dried compressed air at ambient pressure. Dryers consists from control valves, controller with LED display and two columns filled with desiccant. Springs in the columns make sure that the desiccant beads will not move during operation. Proven robust design enables efficient and reliable operation, fast installation and simple maintenance.
operating presure: 50, 100, 250, 400 bar
operating temp. range: 1,5 to 50 °C
pressure dew points: -40 °C
flow rate: 50 to 1600 Nm³h
• compressed air systems
