Product description

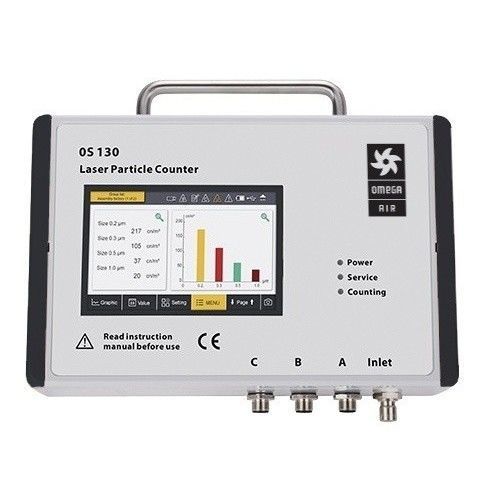

Laser particle counter OS 130 / OS 132 is designed for continuous monitoring of particles in compressed air and other compressed gases. The instrument supports continuous 24/7 operation. Depending on the selected model, sensitivity is available from 0.1 μm up to 5.0 μm. The OS 130 / OS 132 can meet the requirements of the compressed air standard ISO 8573-4. Measurement results are reported as particle counts per ft³, per l or per m³, or alternatively in μg/m³. Configuration and settings are available via the integrated display, an external display or the service software.

Applications

• General compressed air systems
• Medical air
• Pharmaceutical production
• Breathable air systems
• Food and beverage processing
• Medical engineering
• Conveyance of hygroscopic food
• High-tech processes
• Electronics industry

Technical specifications

• Model: OS 130 / OS 132
• Optimized for compressed air and other compressed gases
• Continuous operation: 24/7
• Sensitivity range: 0.1 μm – 5.0 μm (model-dependent)
• Compliance: can fulfill ISO 8573-4 (compressed air standard)
• Measurement outputs: particle counts per ft³, per litre (l) or per m³; alternatively μg/m³
• Settings and configuration via integrated display, external display or service software
