Ultrasonic leak detector OS 531

compressed airgasportable

Product overview

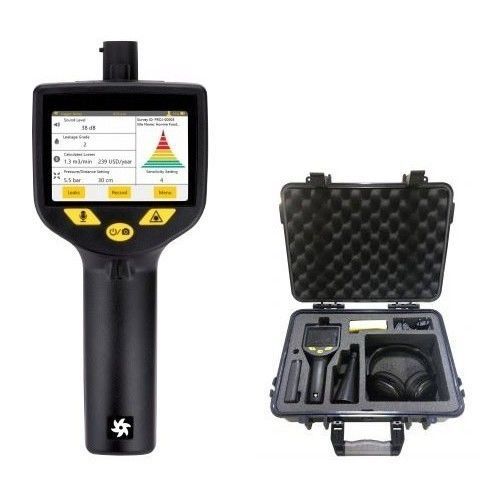

Portable ultrasonic leak detector OS 531 enables rapid detection and documentation of leaks in compressed air and other gas systems. The 3.5" color LCD touch screen simplifies operation while the built-in camera and voice recording allow photographic and audio documentation of leak locations. Designed for inspection teams, the device integrates with Leak Management Systems for centralized tracking and reporting.

Applications

• Leak detection in compressed air, nitrogen, oxygen and other industrial gas systems
• Preventive maintenance, energy-loss assessment and repair prioritization

Key features

• 3.5" color LCD touch screen for intuitive operation
• Built-in camera to photograph leak locations
• Voice recording for on-site notes and surveys
• Large/mass storage for records, photos and audio files
• Laser pointer for precise pinpointing of leak sources
• Calculates air loss in m3/h and converts to local currency
• Portable design suitable for maintenance and field technicians

Technical specifications

• Model: OS 531
• Function: ultrasonic leak detection for compressed air and other gases
• Display: 3.5" color LCD touch screen
• Camera: built-in for photographing leak sites
• Audio: voice recording capability
• Storage: high-capacity storage for logs, photos and recordings
• Laser: pointer for precise location marking
• Loss calculation: shows m3/h and local currency
• Compatibility: compatible with LMS (Leak Management System) — cloud service or local server installation

Integration and data management

• Compatible with Leak Management System for centralized recordkeeping and analysis
• Export survey data, photos and audio for reporting and corrective actions
• Cloud-based or local server installation options to fit company IT policies
