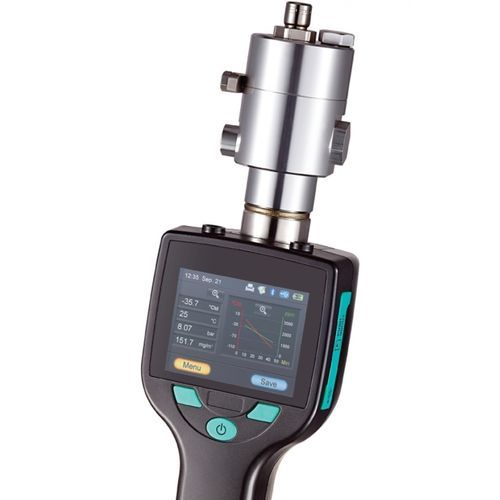

Hand-held dew-point meter OS 505

portableruggedwith data logger

Product description
Portable dew point sensor OS 505 combines next-generation measurement technology with a modern user interface. The instrument measures dew point together with line pressure so that dew point (which is pressure dependent) can be calculated accurately and without human error, in accordance with ISO 8573 principles. The handheld, rugged case design enables on-site checks and commissioning of compressed air and gas systems.

Applications

• Compressed air systems
• Air dryers and filtration systems
• On-site quality control and commissioning

Key features

• Portable unit – hand-held instrument with rugged case
• Combined dew point and line-pressure measurement (pressure-compensated)
• Integrated pressure sensor
• Data logger – ability to save and print measurements
• Modern user interface for straightforward operation

Technical data
See technical data image on the product page for detailed specifications.

Specifications

• Measurement: Dew point and line pressure (combined measurement)
• Standard reference: Measurement accounting for pressure dependency (ISO 8573 related)
• Form factor: Hand-held portable unit with rugged case
• Data handling: Built-in data logger with ability to save and print measurements
• Pressure measurement: Integrated pressure sensor
• User interface: Modern user interface design
