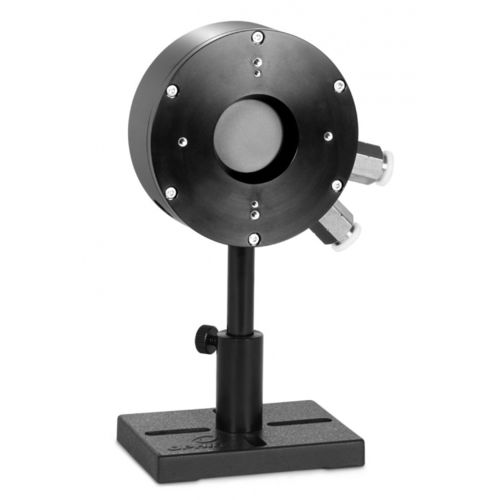

Laser power sensor 1000W-BB-34-Quad

The BeamTrack series 1000W-BB-34-QUAD laser measurement sensor measures laser beam position well as power and energy. It has a 34mm aperture and can measure beam position to 0.5mm accuracy. It measures power from 5W to 1000W and energy from 500mJ to 300J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20µm. The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface. Specification Absorber Type: Broadband Aperture: Ø34mm Spectral Range: 0.19-20µm Power Range: 5W-1000W Energy Range: 500mJ-300J Backscattered Power: N.A. Dimensions: Ø100 W x 35 D (mm) Max Pulse Energy: 300J Max Average Power Density: 7kW/cm² Response Time: 2.5 s Max Energy Density (for <100ns): 0.3J/cm² Max Energy Density (for 2ms): 10J/cm² Max Average Power: 1000W BeamTrack Functions: Power/Energy/Position Compliance: CE, China RoHS
