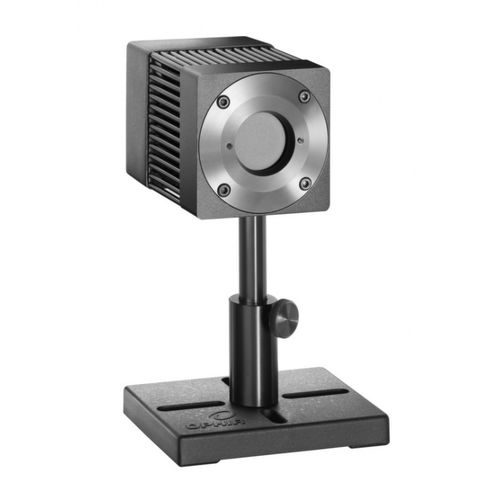

Laser power sensor F150A-BB-26-PPS

The BeamTrack series F150A-BB-26-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 26mm aperture and can measure beam size to 5% accuracy and position to 0.1mm accuracy. It measures power from 40mW to 150W and energy from 20mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20µm. The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface. Specification Absorber Type: Broadband Aperture: Ø26mm Spectral Range: 0.19-20µm Power Range: 50mW-150W Energy Range: 20mJ-100J Backscattered Power: N.A. Dimensions: 64 L x 64 W x 93 D (mm) Max Pulse Energy: 100J Max Average Power Density: 12kW/cm² Response Time: m 1.5 s Max Energy Density (for <100ns): 0.3J/cm² Max Energy Density (for 2ms): 10J/cm² Max Average Power: 150W BeamTrack Functions: Power/Energy/Position/Size Compliance: CE, China RoHS
