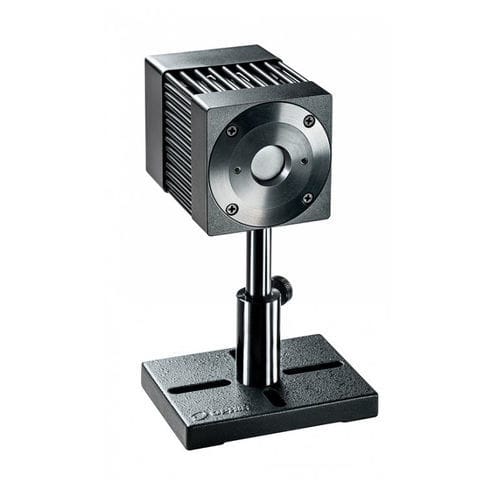

Laser power sensor F80(120)A-CM-17
thermal

laser power sensor
laser power sensor
Add to favorites
Compare this product


Characteristics

Type
laser, thermal

Description

The F80(120)A-CM-17 is a thermal power/energy laser measurement sensor with a high damage threshold for high repetition rate pulsed lasers. It has a 17.5mm aperture and can measure power from 100mW to 80W continuously and to 120W intermittently. The high damage threshold CM absorber covers the spectral range from 0.248 to 9.4µm and has a damage threshold of 35kW/cm² for high repetition rates. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface. Absorber Type - CM Aperture - Ø17.5mm Spectral Range - 0.248μm-9.4μm Power Range - 100mW-120W Energy Range - 50mJ-200J Dimensions - 64 L x 64 W x 93 D (mm) Max Pulse Energy - 200J Max Average Power Density - 35kW/cm² Response Time - 2 s Max Energy Density (for <100ns) - 0.7J/cm² Max Energy Density (for 2ms) - 45J/cm² Max Average Power - 120W Compliance - CE, UKCA, China RoHS
