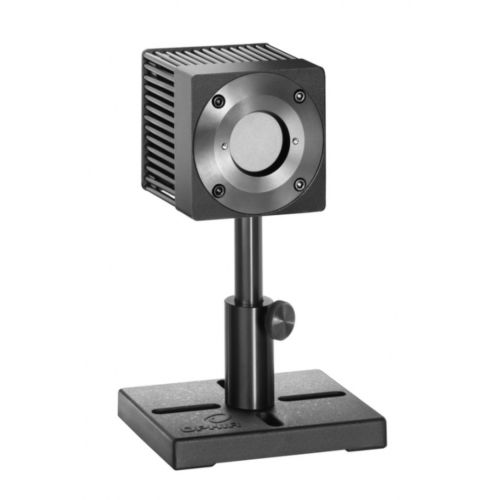

Laser power sensor 50(150)A-BB-26-PPS

The BeamTrack series 50(150)A-BB-26-PPS laser measurement sensor measures laser beam size and position well as power and energy. It has a 26mm aperture and can measure beam size to 5% accuracy and position to 0.1mm accuracy. It measures power from 40mW to 50W continuously and to 150W intermittently.It can measure energy from 20mJ to 100J. The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface. Specification Absorber Type: Broadband Aperture: Ø26mm Spectral Range: 0.19-20µm Power Range: 40mW-150W Energy Range: 20mJ-100J Backscattered Power: N.A. Dimensions: 64 L x 64 W x 64 D (mm) Max Pulse Energy: 100J Max Average Power Density: 12kW/cm² Response Time: 1.5 s Max Energy Density (for <100ns): 0.3J/cm² Max Energy Density (for 2ms): 10J/cm² Max Average Power: 150W BeamTrack Functions: Power/Energy/Position/Size Compliance: CE, China RoHS
