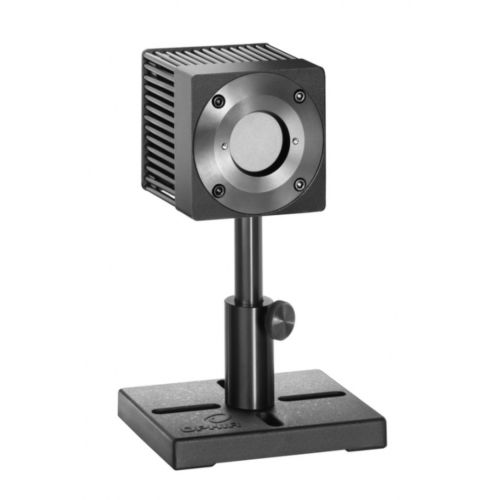

The BeamTrack series 50(150)A-BB-26-QUAD laser measurement sensor measures laser beam position as well as power and energy. It has a 26mm aperture and can measure position to 0.1mm accuracy. It measures power from 40mW to 50W continuously and to 150W intermittently.It can measure energy from 20mJ to 100J.
The sensor comes with a 1.5m cable that connects it to the electronic box, and another 0.5m cable that connects the box to a Meter or PC interface.
Specification
Absorber Type: Broadband
Aperture: Ø26mm
Spectral Range: 0.19-20µm
Power Range: 40mW-150W
Energy Range: 20mJ-100J
Backscattered Power: N.A.
Dimensions: 64 L x 64 W x 64 D (mm)
Max Pulse Energy: 100J
Max Average Power Density: 12kW/cm²
Response Time: 1.5 s
Max Energy Density (for <100ns): 0.3J/cm²
Max Energy Density (for 2ms): 10J/cm²
Max Average Power: 150W
BeamTrack Functions: Power/Energy/Position
Compliance: CE, China RoHS
