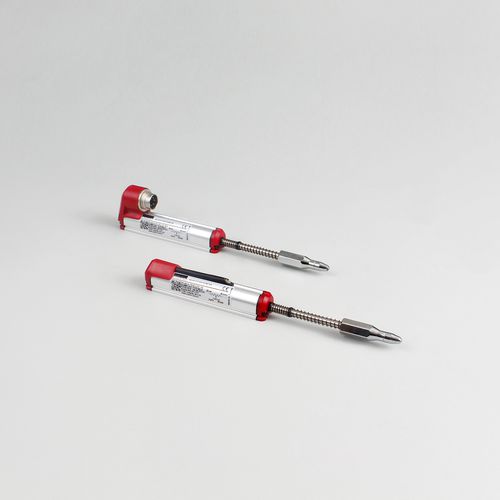

Linear position sensor SLPS spring-loaded potentiometermechanicalanalog
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Technology
- spring-loaded potentiometer, mechanical
- Output signal
- analog, with potentiometric output
- Measurement object
- metal
- Protection class
- IP65
- Applications
- industrial
- Other characteristics
- absolute, high-precision, high-resolution, economical
- Measuring range
Max.: 100 mm
(3.94 in)Min.: 10 mm
(0.39 in)- Linearity
Max.: 0.5 %
Min.: 0.2 %
- Supply voltage
Max.: 26 V
24 V
Min.: 22 V
- Ambient temperature
Max.: 90 °C
(194 °F)Min.: -30 °C
(-22 °F)
Description
Long mechanical life
Excellent repeatability <0.01 mm
Infinite resolution
2 kOhm: 10 ... 50mm, 5 kOhm: 75 ... 100mm
