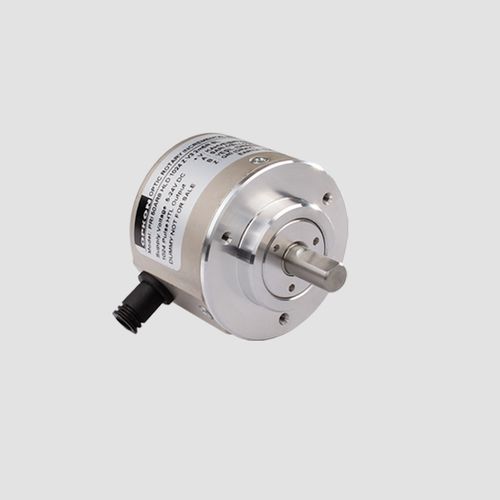

Absolute rotary encoder MRA50magnetic10-bitsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic
- Absolute encoder resolution
- 10-bit
- Construction
- solid-shaft
- Output signal
- analog
- Supply voltage
- 24 Vdc, 15VDC, 12 Vdc, 8VDC
- Material
- aluminum, stainless steel, steel
- Protection level
- standard
- Housing diameter
50 mm
(1.97 in)- Shaft diameter
8 mm
(0.31 in)- Rotational speed
1,000 rpm
(6,283 rad.min-1)- Process temperature
Min.: -30 °C
(-22 °F)Max.: 90 °C
(194 °F)
Description
Magnetic absolute rotary encoder
2.5m cable (standard) with Connector (Optional) electrical connection
