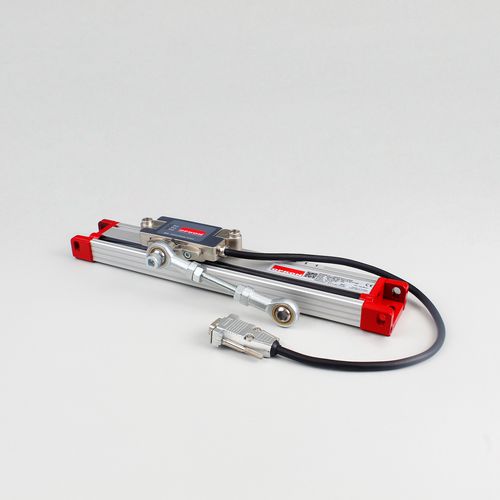

Incremental linear encoder MPSmagneticanalog5 VDC
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- magnetic
- Output signal
- analog
- Supply voltage
- 5 VDC, 24 Vdc, 8VDC
- Material
- aluminum
- Protection level
- standard, IP65
- Resolution
5 µm
- Process temperature
Max.: 90 °C
(194 °F)Min.: -30 °C
(-22 °F)
Description
Other resolutions optional
Measuring range 150 - 2000 mm
Adjustable referance
LED status indicators
Full symetrical
± 15 µm accuracy
